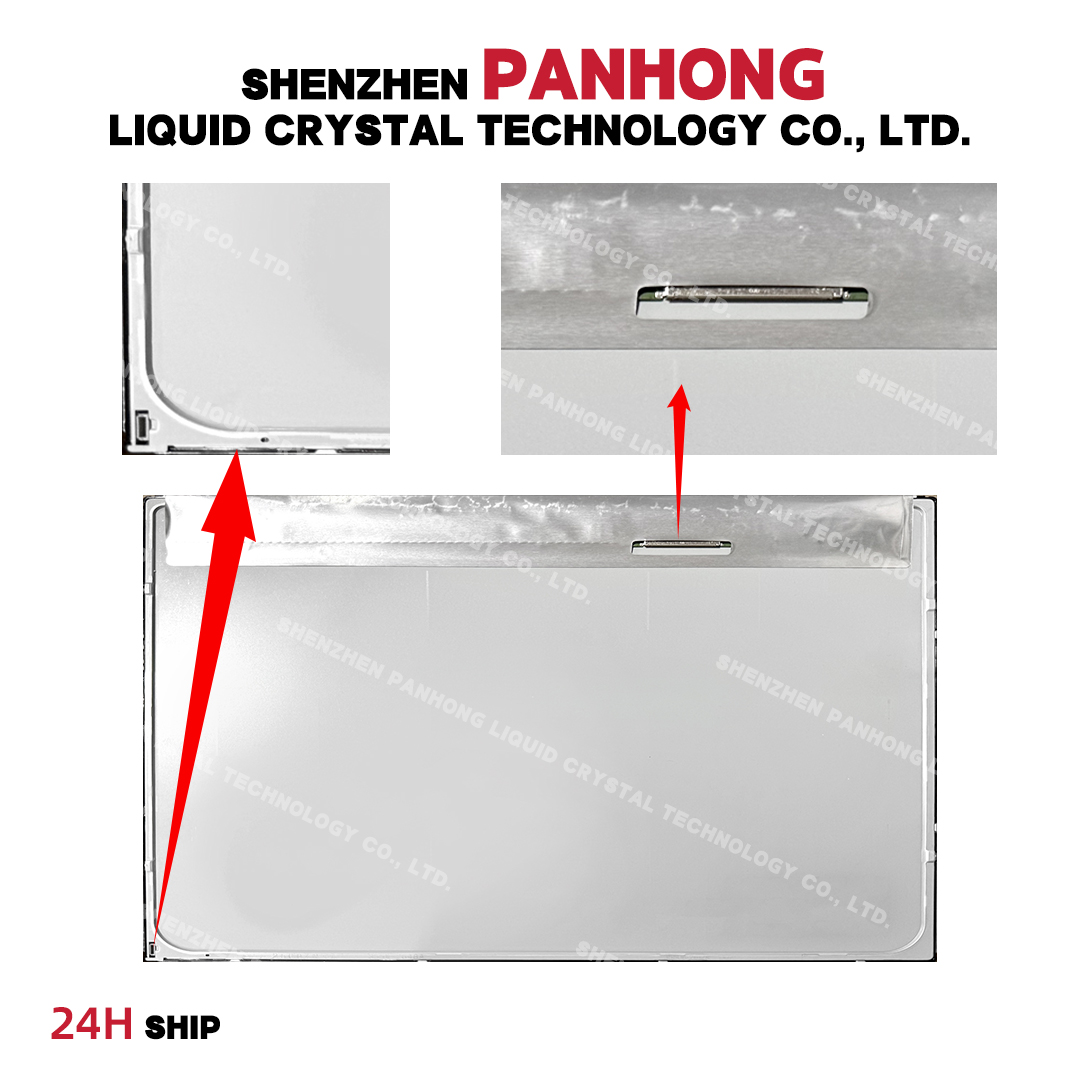

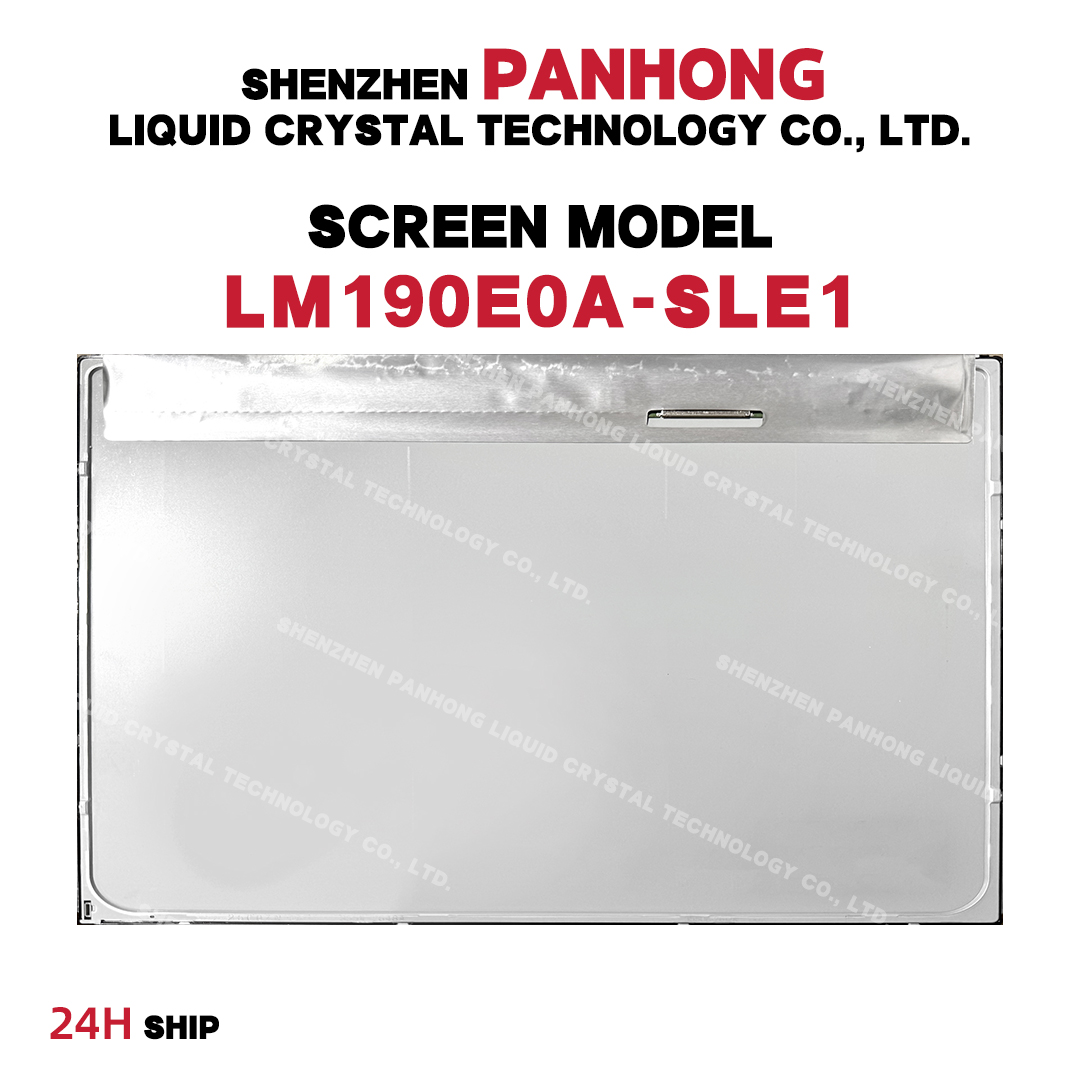

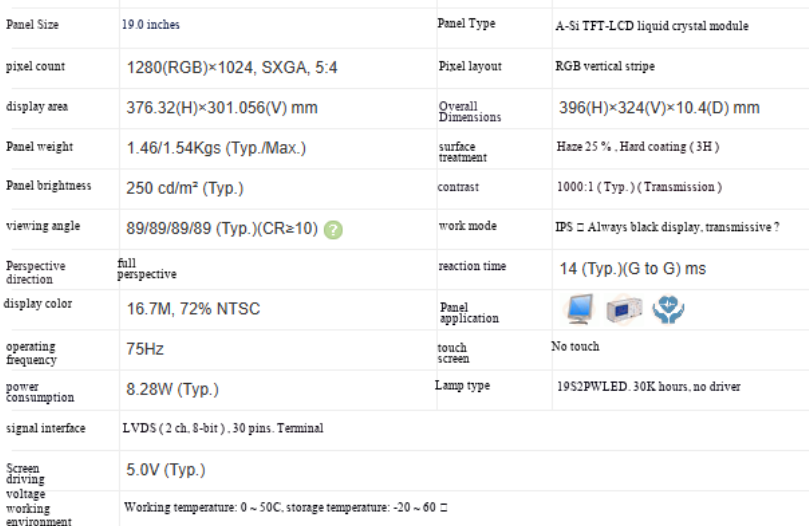

The display resolution of LM190E0A-SLE1 is 1280 (RGB) × 1024 (SXGA), with an aspect ratio of 5:4 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 376.32 (width) × 301.056 (height) mm, the external dimensions are 396 (width) × 324 (height) × 10.4 (thickness) mm, the visible dimensions are 378.8 (width) × 303.0 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.46/1.54Kgs (Typ./Max.). In terms of backlight, this product uses a 19S2P WLED side entry light source (on the right), which has a lifespan of 30K hours and does not include backlight drivers. LM190E0A-SLE1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
