LM238WR2-SPA1 23.8" LCD Screen Display IPS FHD

$88.00

7 Views

Typical features include sRGB, white LED backlight, inverted terminals, 10 bit grayscale, matte surface, Energy Star 7.0 compliance. Its working temperature is 0-50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors and industry.

Get a Quote

Category :

23.8-inch LCD screen

Description

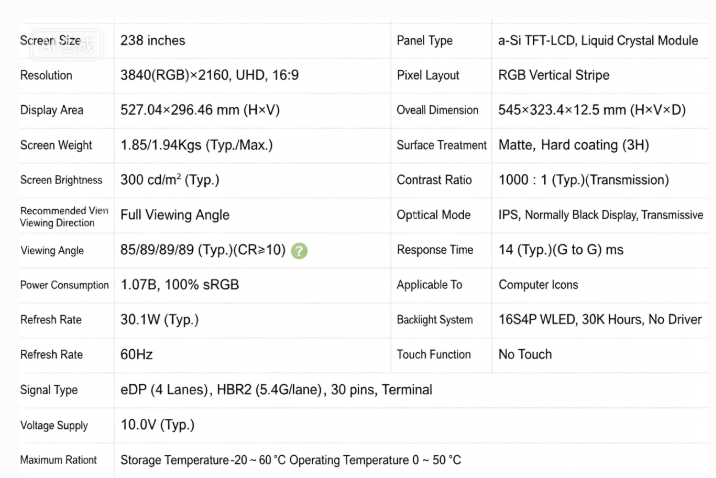

The display resolution of LM238WR2-SPA1 is 3840 (RGB) × 2160 (UHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, the visible size is 530.2 × 299.6 (width × height) mm, the appearance size is 545 (width) × 323.4 (height) × 12.5 (thickness) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.85/1.94Kgs (Typ./Max.). In terms of backlight, this product uses a 16S4P WLED side entry light source with a lifespan of 30K hours, without backlight driver. LM238WR2-SPA1 adopts eDP (4 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
