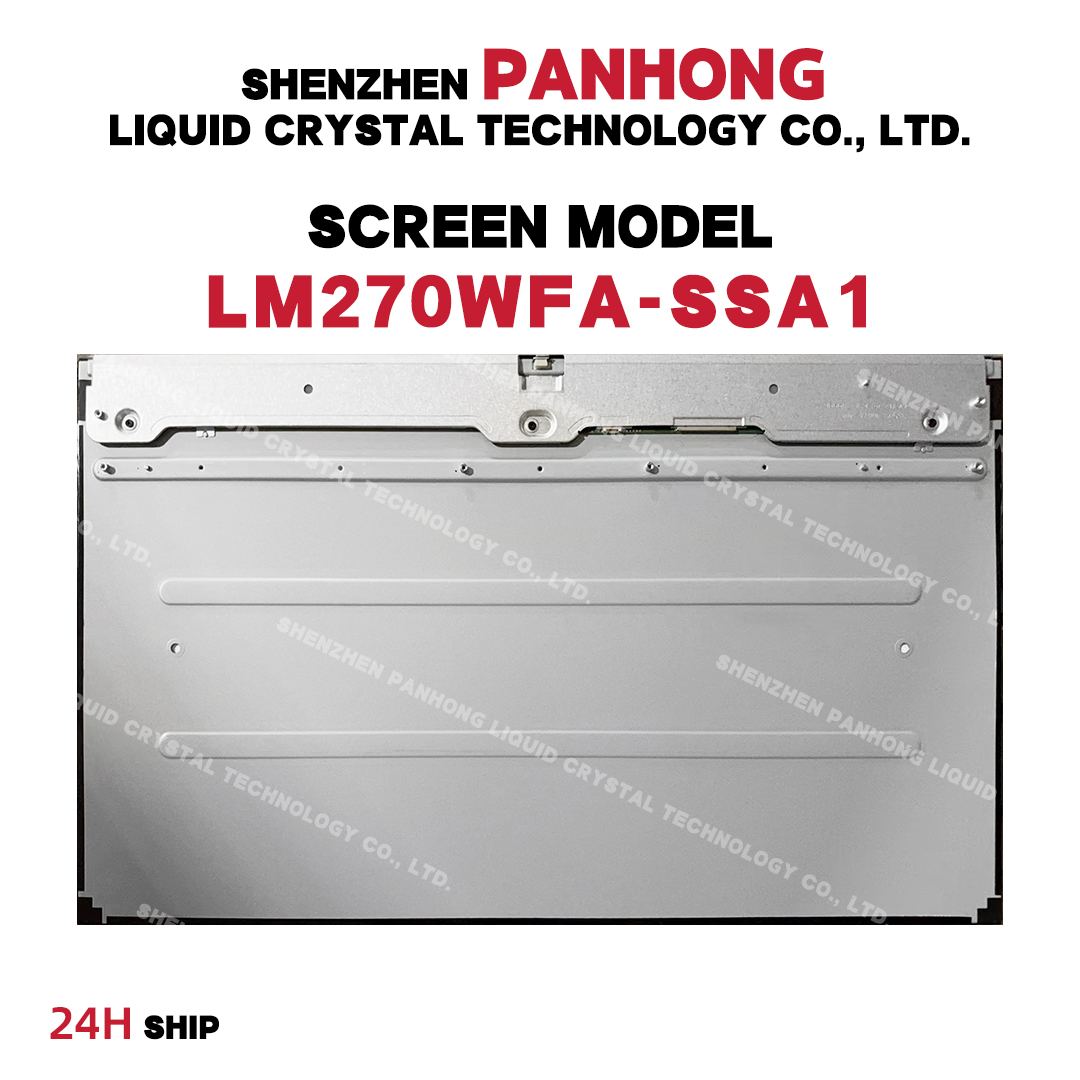

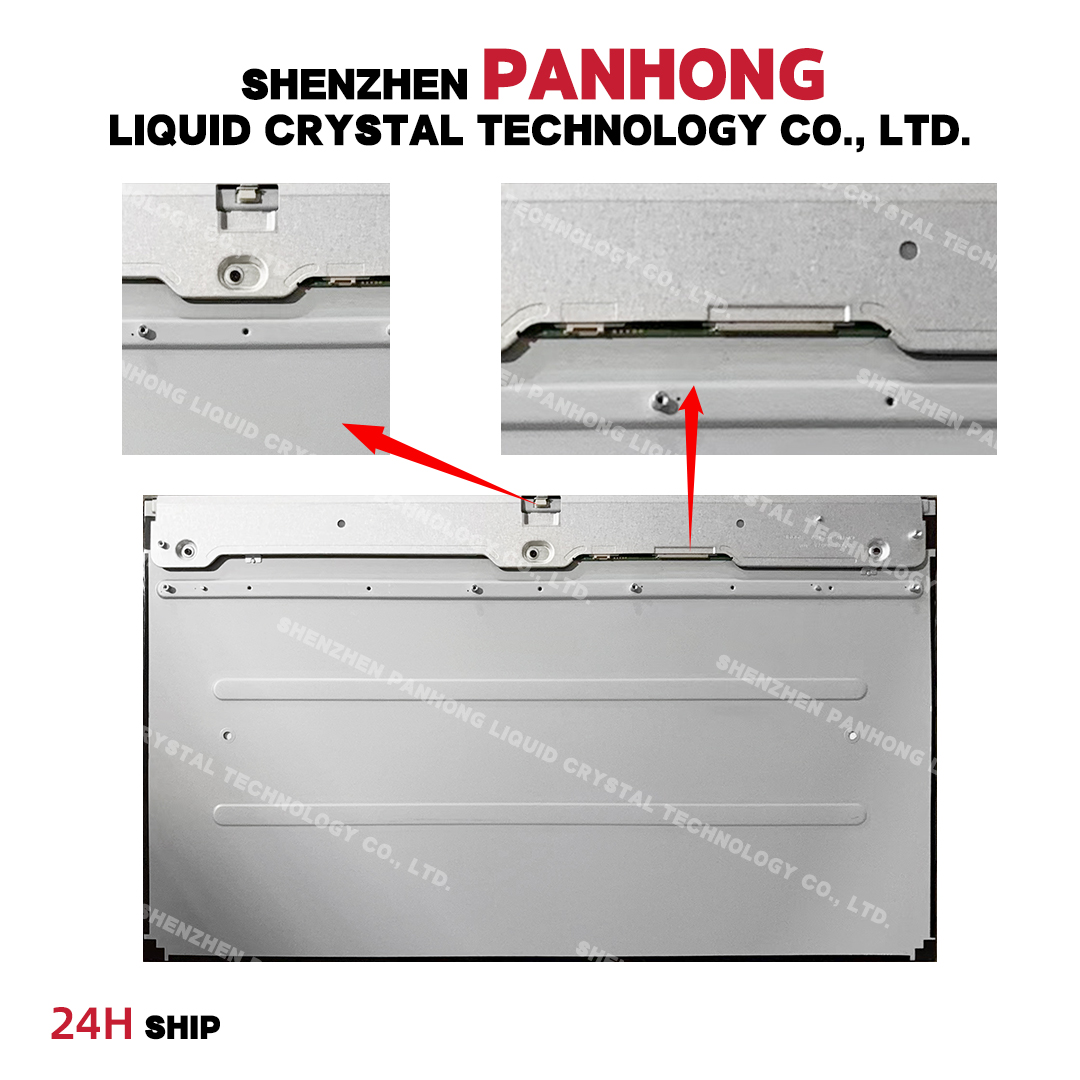

LM270WFA-SSA1 27" LCD Touch Screen Display IPS FHD

$150.00

6 Views

Typical features include sRGB, borderless on 3 sides, touch screen, white LED backlight, inverted terminals, mirror surface, In Cell Touch, 3-sides boderless.

Get a Quote

Category :

27-inch LCD screen

Description

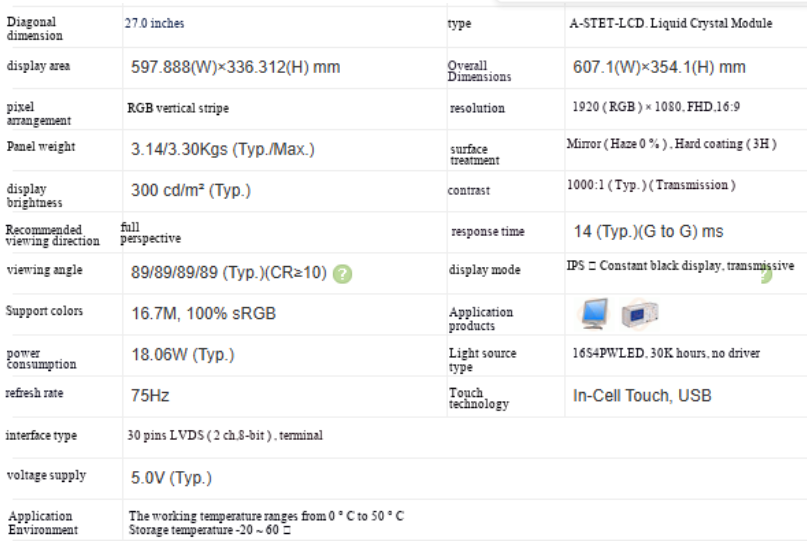

The display resolution of LM270WFA-SSA1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 597.888 × 336.312 (width × height) mm, and its appearance size is 607.1 (width) × 354.1 (height) mm. The surface treatment is mirror finish (Haze 0%), Hard coating (3H), and the net weight of the product is 3.14/3.30Kgs (Typ./Max.). In terms of backlight, this product uses a 16S4P WLED side entry light source with a lifespan of 30K hours, without backlight driver. LM270WFA-SSA1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
