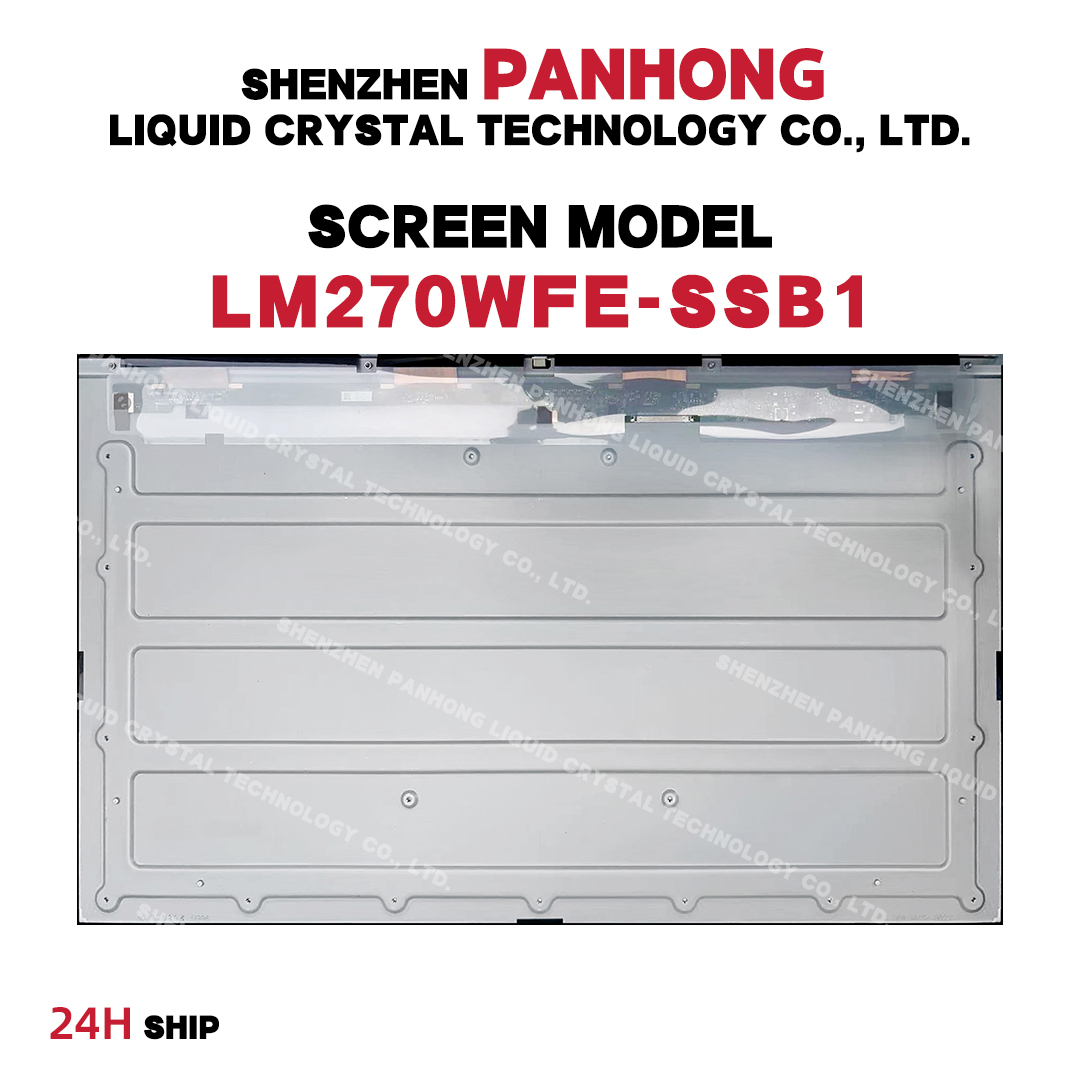

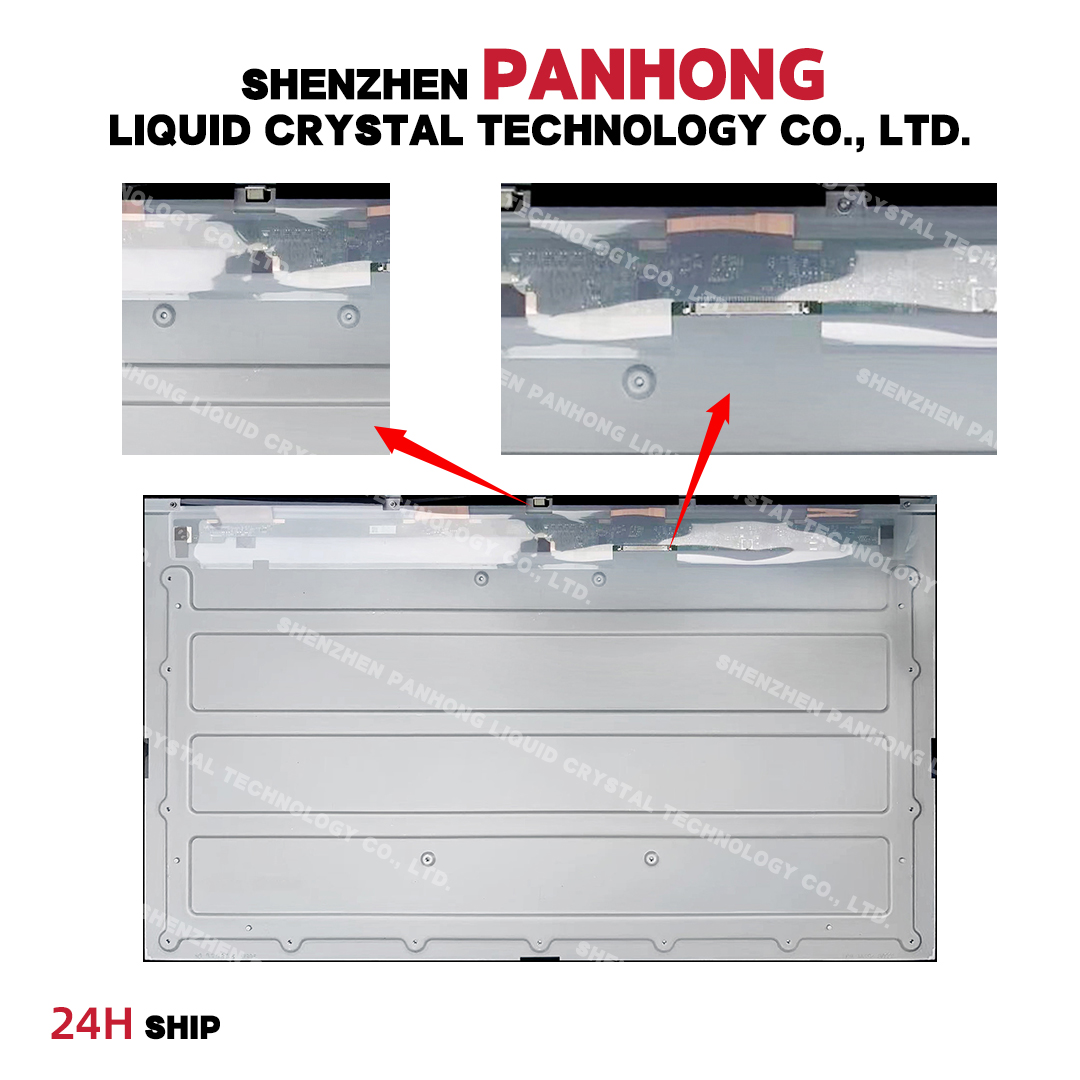

LM270WFE-SSB1 27" LCD Screen Display IPS FHD

$88.00

4 Views

Typical features include sRGB, 3-side borderless, 144Hz, white LED backlight, matte surface, LBL, TCO9.0, ES8.0, 3-side borderless. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors.

Get a Quote

Category :

27-inch LCD screen

Description

The display resolution of LM270WFE-SSB1 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in a vertical RGB stripe pattern. Its display area size is 597.888 × 336.312 (width × height) mm, and its appearance size is 607.1 (width) × 350.6 (height) × 13.9 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.59/2.72Kgs (Typ./Max.). In terms of backlight, this product adopts a 17S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. LM270WFE-SSB1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 144Hz.
