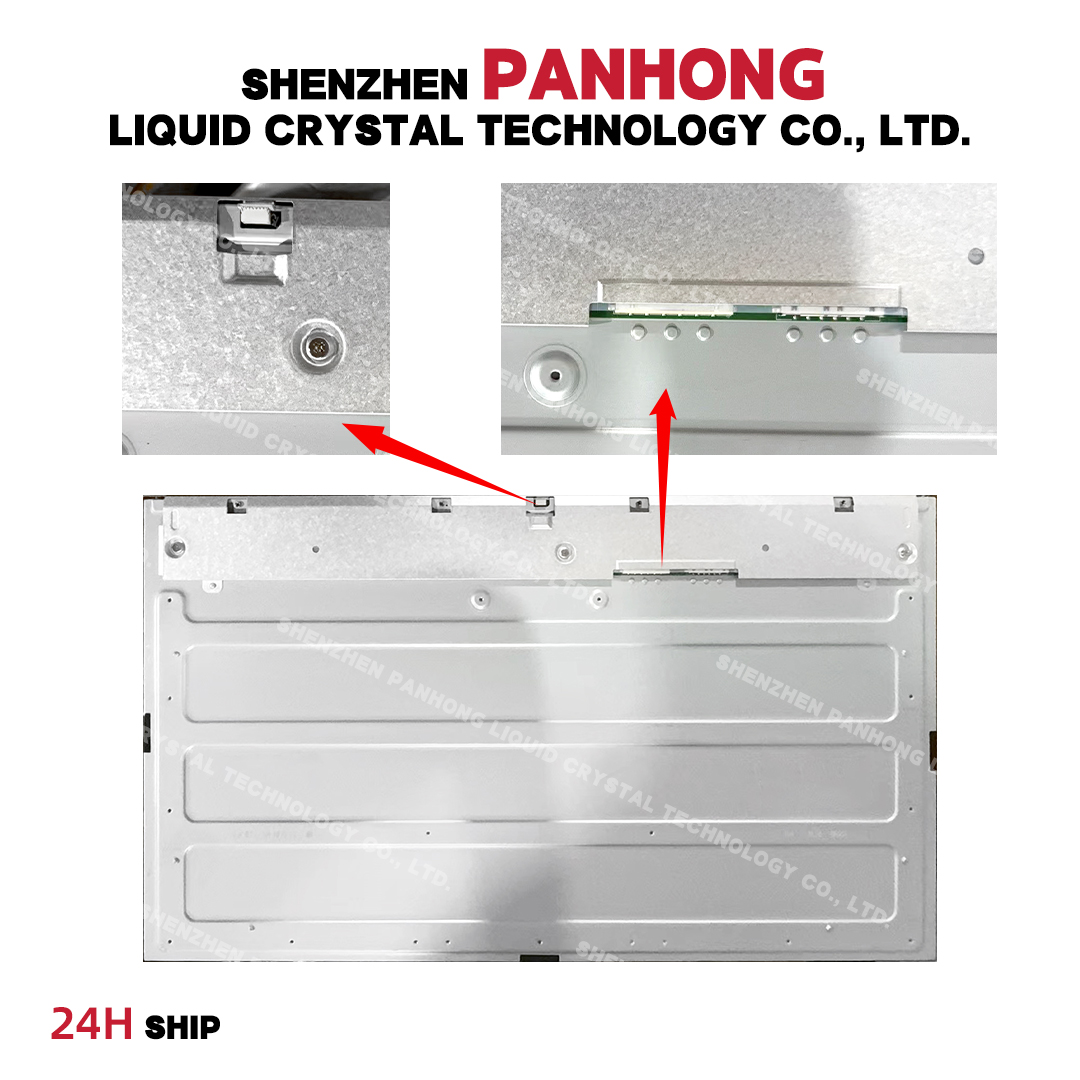

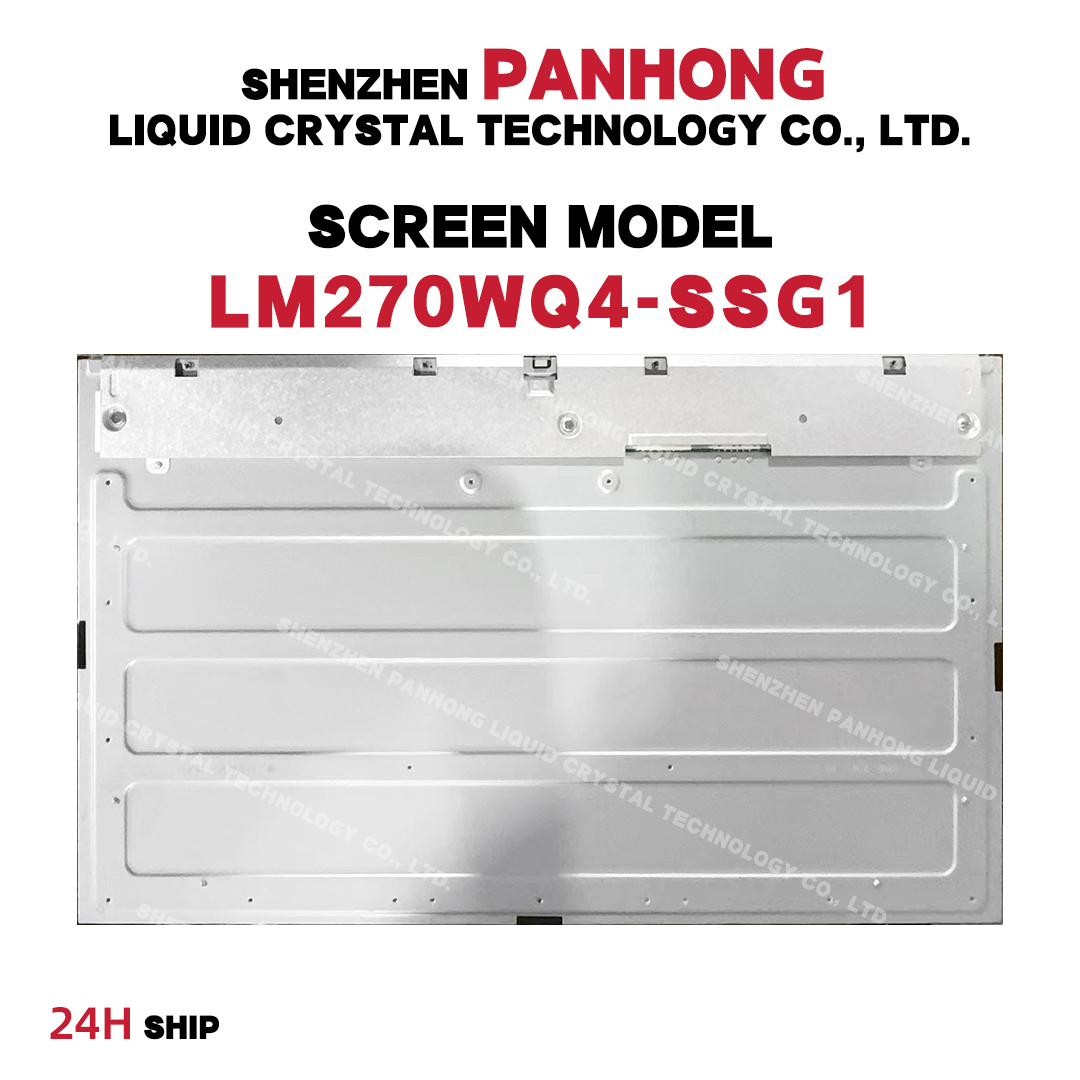

LM270WQ4-SSG1 27" LCD Screen Display IPS FHD

$88.00

6 Views

Typical features are summarized as: DCI-P3, sRGB, 3-side borderless, white LED backlight, inverted terminals, matte surface, 3-side borderless, LBL. Based on its features, this model is recommended for use in products such as computer monitors.

Get a Quote

Category :

27-inch LCD screen

Description

The LM270WQ4-SSG1 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 596.736 (width) × 335.664 (height) mm, and its appearance size is 608.8 (width) × 351.66 (height) × 12.96 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.77/2.91Kg (Typ./Max.). In terms of backlight, this product adopts a side entry light source (bottom) with 18S4P WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM270WQ4-SSG1 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 92 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 100Hz
