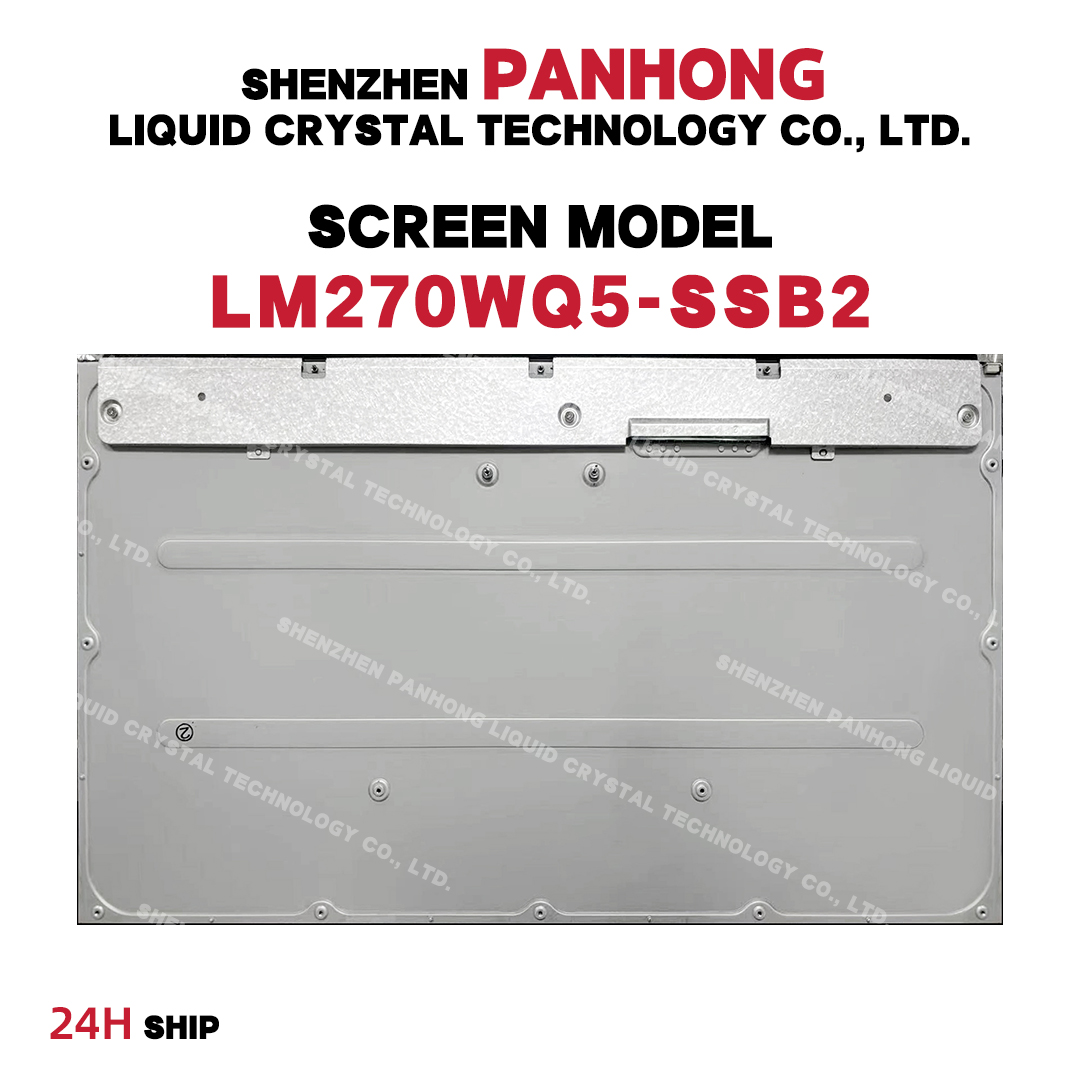

LM270WQ5-SSB2 27" LCD Screen Display IPS FHD

$88.00

5 Views

The 27.0-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.

Get a Quote

Category :

27-inch LCD screen

Description

The LM270WQ5-SSB2 has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 596.736 × 335.664 (width × height) mm, and its appearance size is 608.6 × 348.3 (width × height) × 15.3 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.90/3.05Kg (Typ./Max.). In terms of backlight, this product uses a 19S4P WLED side entry light source (bottom) with a lifespan of 30K hours and does not include backlight drivers. LM270WQ5-SSB2 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 92 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
