M238DAN01.1 23.8" LCD Screen Display IPS FHD

$88.00

8 Views

Typical features include: 3-side borderless, white LED backlight, 3-side borderless, LBL. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use with computer monitors.

Get a Quote

Category :

23.8-inch LCD screen

Description

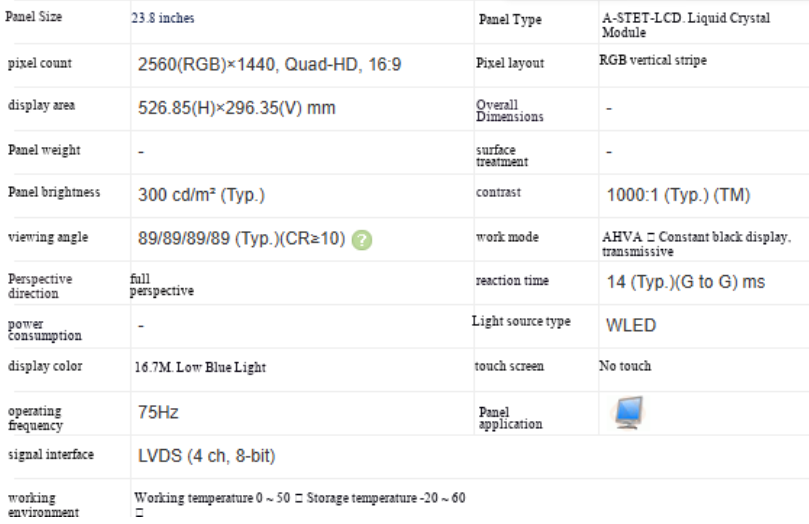

The M238DAN01.1QN has a display resolution of 2560 (RGB) × 1440 (Quad HD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 526.85 × 296.35 (width × height) mm. In terms of backlight, this product uses a WLED side entry light source. M238DAN01.1QN adopts LVDS (4 ch, 8-bit) signal interface. Its typical vertical refresh rate Fv is 75Hz.

Related Products

MG2381G01-1 23.8"LCD Screen Display IPS FHD

M238HVN02.6 23.8" LCD Glass Screen Display IPS FHD

The 23.8-inch LCD glass product using a-Si TFT-LCD technology has no backlight, no touch, and has been bonded with a 6-source chip driver IC.

M238HCA-L3Z 23.8" LCD Screen Display IPS FHD

Typical features include: 3-side borderless, white LED backlight, inverted terminals, matte surface, and 3-side borderless. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use with computer monitors.

M238HAK01.2 23.8" LCD Glass Touch Screen Display IPS FHD

23.8-inch LCD glass product using a-Si TFT-LCD technology, without backlight, On-Cell Touch。 The typical features of the screen library include a touch screen and a matte surface. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors.

LTM238HL06 23.8" LCD Screen Display IPS FHD

Typical features are summarized as follows: borderless on 3 sides, white LED backlight, inverted terminals, matte surface, and 3-side borderless. Based on its features, this model is recommended for use in products such as computer monitors.

LTM238HL04 23.8" LCD Screen Display IPS FHD

The 23.8-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.
