M238HAN01.0 23.8" LCD Screen Display IPS FHD

$88.00

8 Views

Compatible Brand  Acer,Apple,Asus,HP/Compaq,Dell(ru),Fujitsu,Gateway,Lenovo,LG,MSI,SAMSUNG,Sony,Toshiba,Universal Screen,Microsoft,Henrylian

Get a Quote

Category :

23.8-inch LCD screen

Description

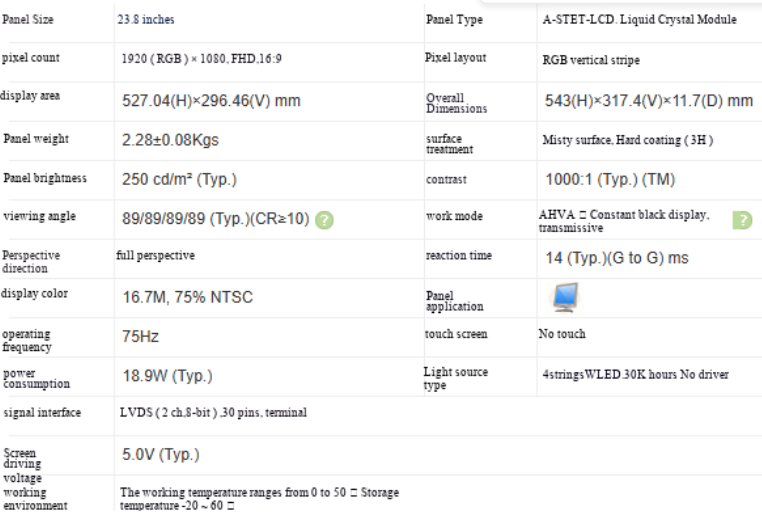

M238HAN01.0 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 527.04 × 296.46 (width × height) mm, the visible size is 530.2 × 299.6 (width × height) mm, the appearance size is 543 × 317.4 (width × height) × 11.7 (thickness) mm, and the surface treatment is matte, Hard coating (3H)， The net weight of the product is 2.28 ± 0.08Kgs. In terms of backlight, this product adopts a side entry light source (bottom) with 4 strings WLED emission, and the service life of the light source is 30K hours, without backlight driver. M238HAN01.0 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
