M238HAN03.7 23.8" LCD Screen Display IPS FHD

$88.00

10 Views

Typical features include sRGB, borderless on 3 sides, white LED backlight, inverted terminals, matte surface, LBL, TCO 9.0 compliance. This model is recommended for use in products such as computer monitors.

Get a Quote

Category :

23.8-inch LCD screen

Description

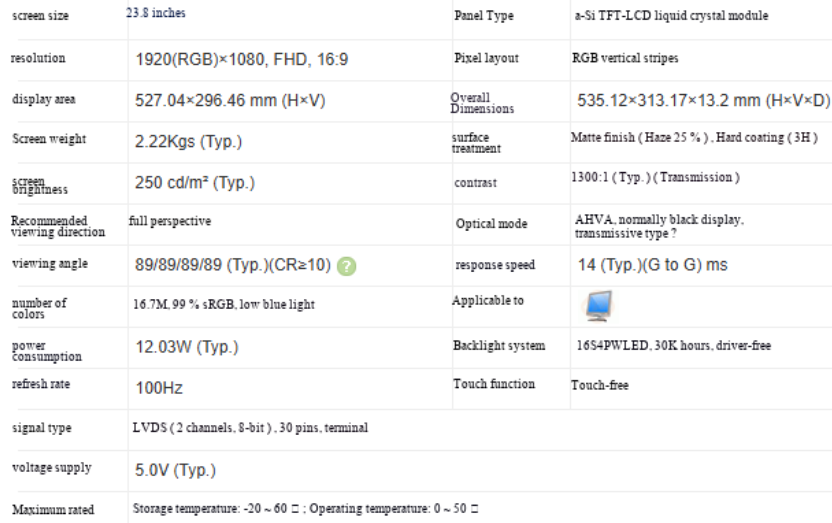

The display resolution of M238HAN03.7 is 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, and its appearance size is 535.12 (width) × 313.17 (height) × 13.2 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.22Kgs (Typ.). In terms of backlight, this product uses a 16S4P WLED side entry light source with a lifespan of 30K hours, without backlight driver. M238HAN03.7 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 100Hz.
