M238HCA-L3B 23.8" LCD Screen Display IPS FHD

$88.00

9 Views

Typical features: 3-side borderless, white LED backlight, inverted terminals, matte surface, 3-side borderless, TCO 7.0 completeness.

Get a Quote

Category :

23.8-inch LCD screen

Description

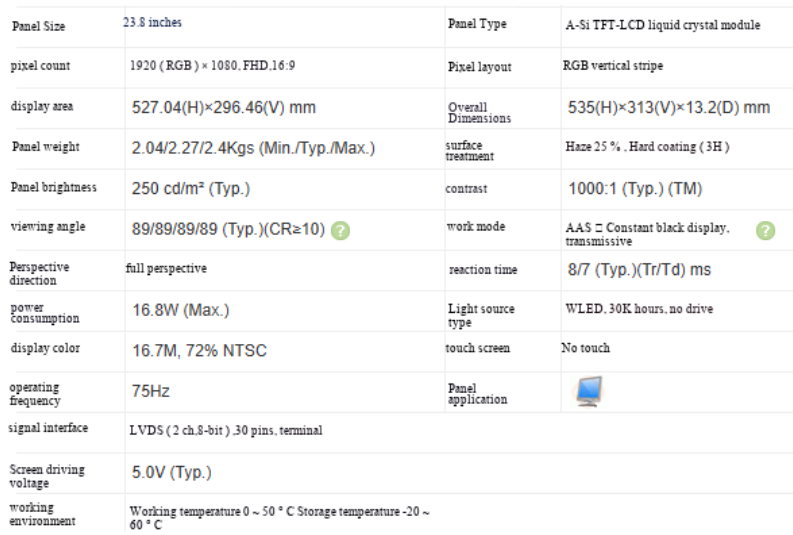

The M238HCA-L3B has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 527.04 (width) × 296.46 (height) mm, and its appearance size is 535 (width) × 313 (height) × 13.2 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.04/2.27/2.4Kgs (Min./Typ./Max.). In terms of backlight, this product uses a WLED side entry light source with a lifespan of 30K hours and does not include backlight drivers. M238HCA-L3B adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
