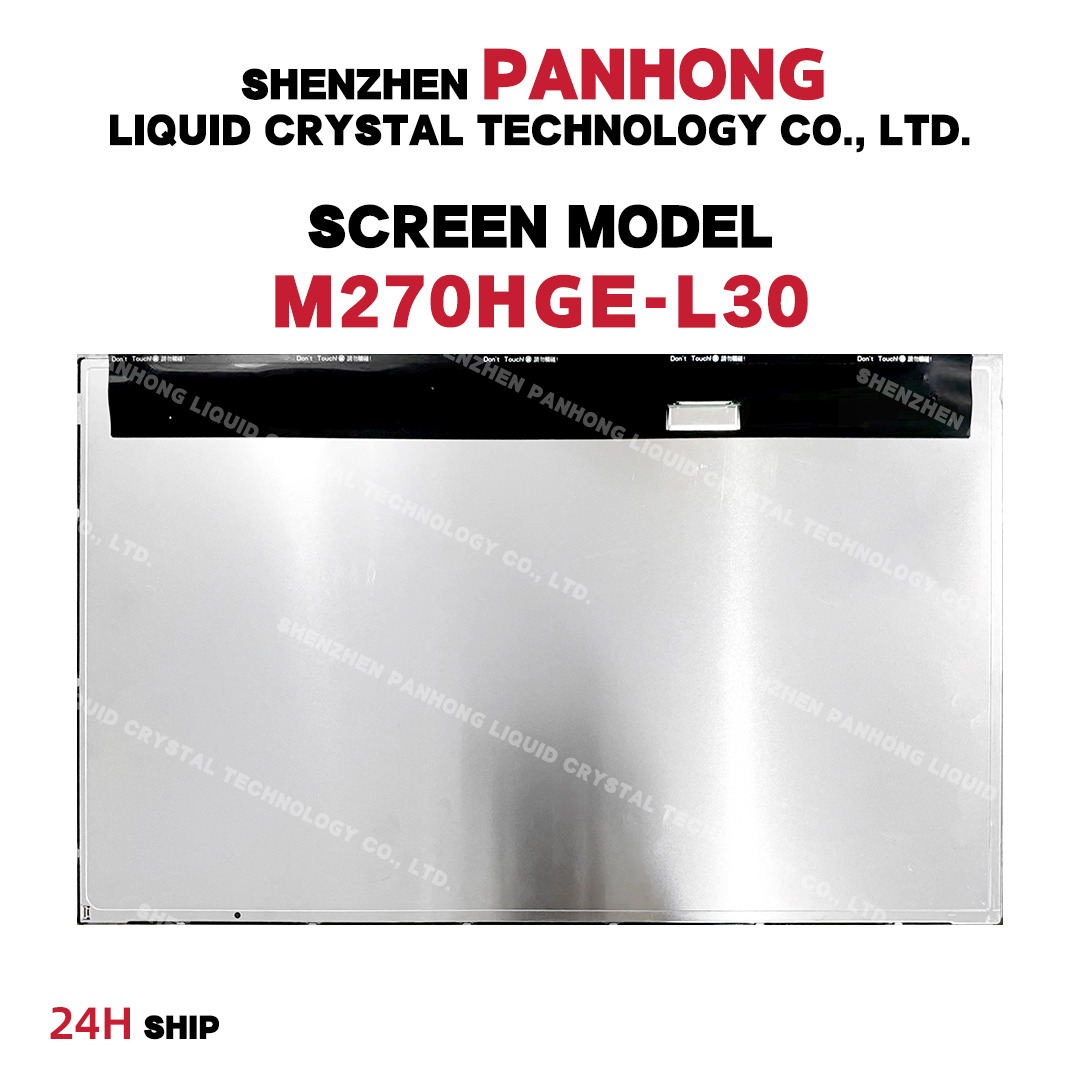

M270HGE-L30 27"LCD Screen Display IPS FHD

$88.00

6 Views

Its typical features are summarized as: white LED backlight, terminal assembly, surface matte finish, Energy Star 7.0 compliance. Based on its features, this model is recommended for use in products such as computer monitors

Get a Quote

Category :

27-inch LCD screen

Description

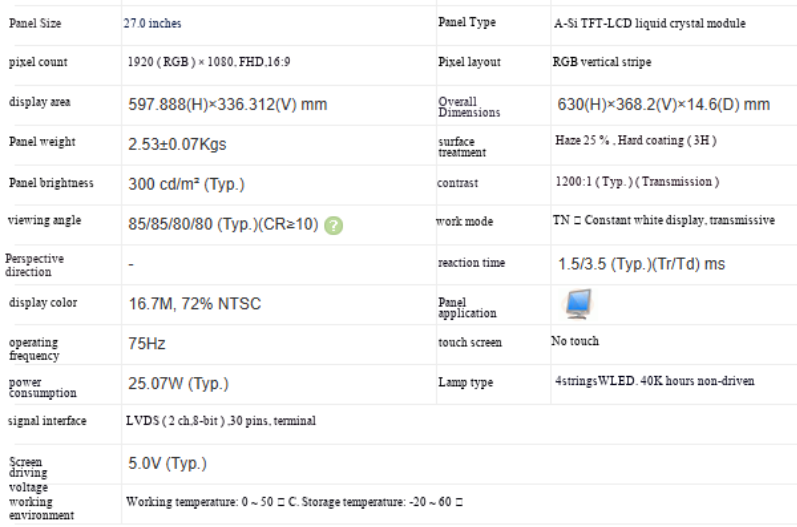

The M270HGE-L30 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 597.888 (width) × 336.312 (height) mm, the appearance size is 630 (width) × 368.2 (height) × 14.6 (thickness) mm, the visible size is 603.9 (width) × 342.3 (height) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.53 ± 0.07Kgs. In terms of backlight, this product adopts a side entry light source with 4 strings WLED emission (on the right), and the service life of the light source is 40K hours, without backlight driver. The M270HGE-L30 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
