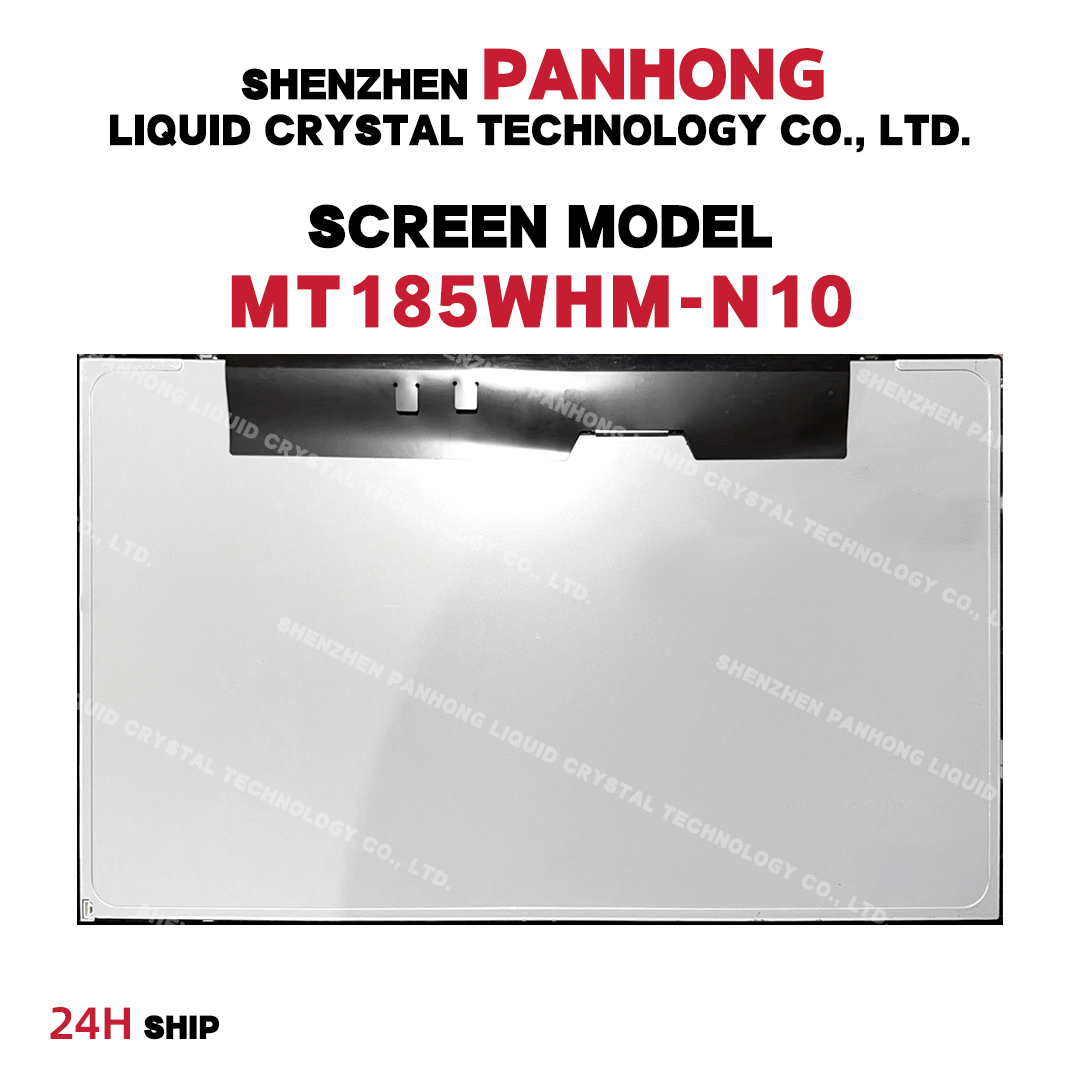

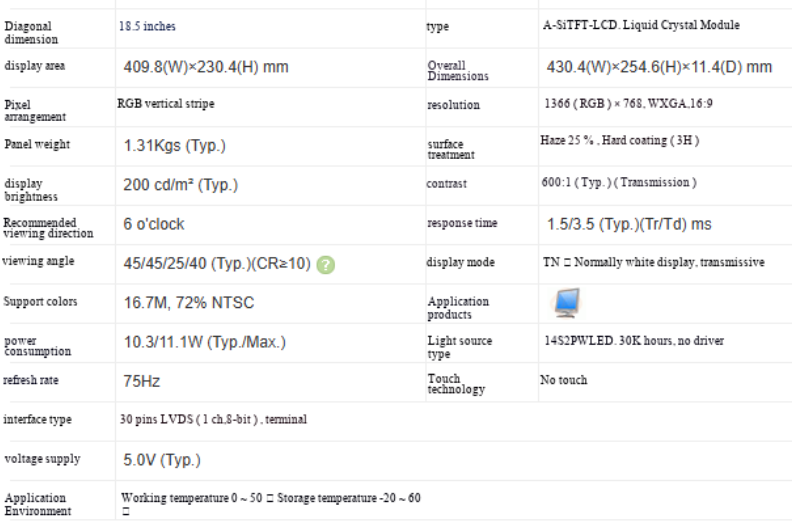

The MT185WHM-N10 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 409.8 × 230.4 (width × height) mm, the visible size is 413.4 × 234.0 (width × height) mm, the appearance size is 430.4 (width) × 254.6 (height) × 11.4 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.31Kg (Typ.). In terms of backlight, this product uses a 14S2P WLED side entry light source (on the right) with a lifespan of 30K hours and does not include backlight drivers. MT185WHM-N10 adopts LVDS (1 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
