MV238FHM-N61 23.8" LCD Screen Display IPS FHD

$88.00

7 Views

Compatible Brand
Acer,Asus,HP/Compaq,Dell(ru),Fujitsu,Gateway,Lenovo,LG,MSI,SAMSUNG,Sony,Toshiba,Universal Screen,Microsoft,Henrylian,TOSHIBA

Get a Quote

Category :

23.8-inch LCD screen

Description

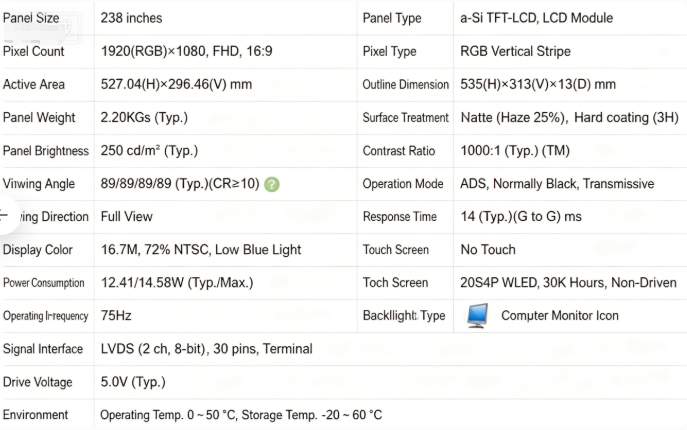

The MV238FHM-N61 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 535 × 313 (width × height) × 13 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.20Kgs (Typ.). In terms of backlight, this product uses a 20S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. MV238FHM-N61 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.

Related Products

MG2381G01-1 23.8"LCD Screen Display IPS FHD

M238HVN02.6 23.8" LCD Glass Screen Display IPS FHD

The 23.8-inch LCD glass product using a-Si TFT-LCD technology has no backlight, no touch, and has been bonded with a 6-source chip driver IC.

M238HCA-L3Z 23.8" LCD Screen Display IPS FHD

Typical features include: 3-side borderless, white LED backlight, inverted terminals, matte surface, and 3-side borderless. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use with computer monitors.

M238HAK01.2 23.8" LCD Glass Touch Screen Display IPS FHD

23.8-inch LCD glass product using a-Si TFT-LCD technology, without backlight, On-Cell Touch。 The typical features of the screen library include a touch screen and a matte surface. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors.

LTM238HL06 23.8" LCD Screen Display IPS FHD

Typical features are summarized as follows: borderless on 3 sides, white LED backlight, inverted terminals, matte surface, and 3-side borderless. Based on its features, this model is recommended for use in products such as computer monitors.

LTM238HL04 23.8" LCD Screen Display IPS FHD

The 23.8-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.
