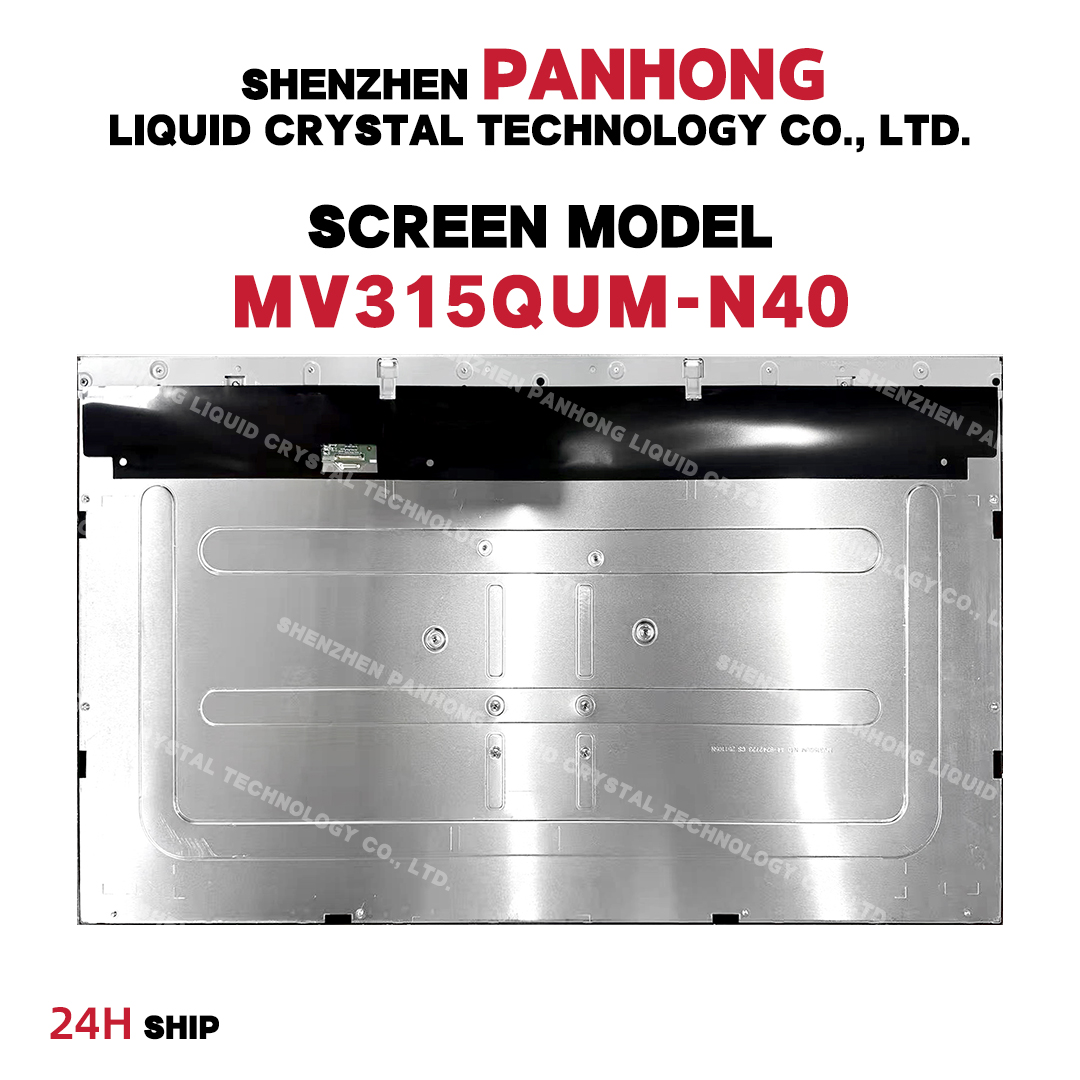

MV315QUM-N40 32"LCD Screen Display IPS FHD

$200.00

6 Views

Typical features are summarized as: DCI-P3, sRGB, HDR600, borderless on 3 sides, high brightness, white LED backlight, inverted terminals, 10 bit grayscale, surface matte, 3-side borderless, HDR600, ES8.0/CEL1/CEC compliant. Based on its features, this model is recommended for use in products such as computer monitors.

Get a Quote

Category :

31.5-inch LCD screen

Description

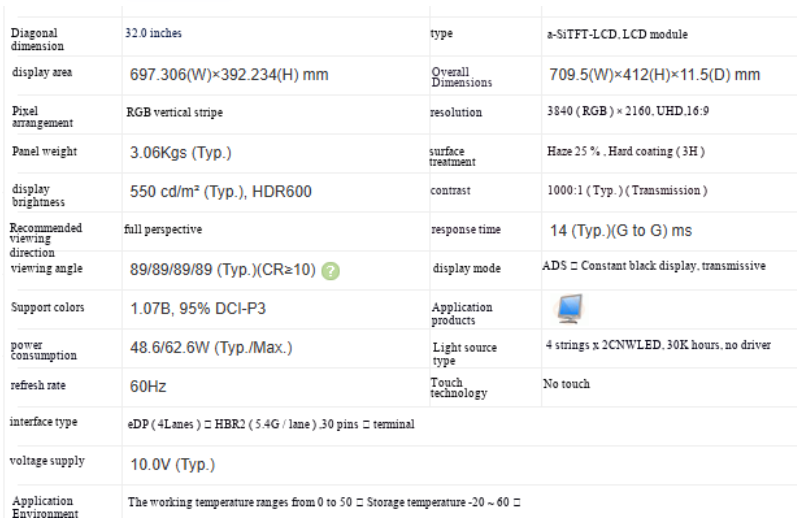

The MV315QUM-N40 has a display resolution of 3840 (RGB) × 2160 (UHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 697.306 (width) × 392.234 (height) mm, and its appearance size is 709.5 (width) × 412 (height) × 11.5 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.06Kg (Typ.). In terms of backlight, this product adopts a side entry light source (bottom) with 4 strings × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. MV315QUM-N40 adopts eDP (4 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
