SG2381B04-3 23.8" LCD Glass Screen Display IPS FHD

$88.00

8 Views

The 23.8-inch LCD glass product using a-Si TFT-LCD technology has no backlight and no touch. Typical features include sRGB, 200Hz, and a matte surface. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors

Get a Quote

Category :

23.8-inch LCD screen

Description

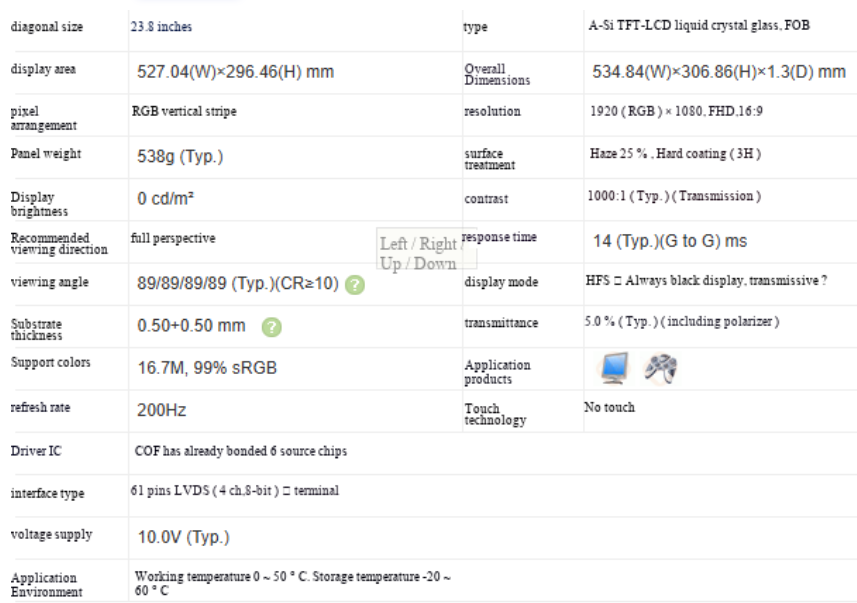

SG2381B04-3 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 527.04 × 296.46 (width × height) mm, and its appearance size is 534.84 (width) × 306.86 (height) × 1.3 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 538g (Typ.), using a glass substrate of 0.50+0.50mm. This product has no backlight. SG2381B04-3 VH.1 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 61 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 200Hz.
