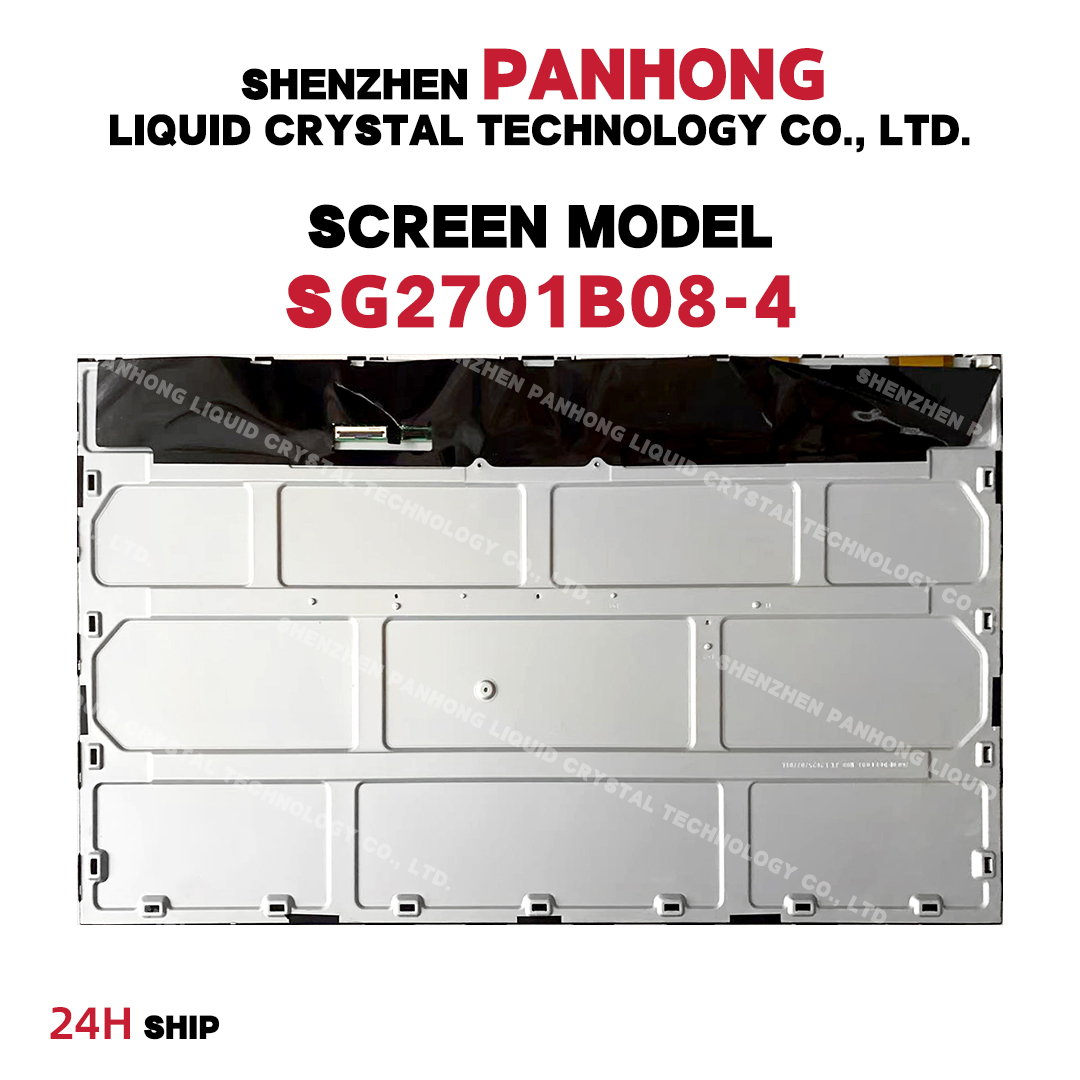

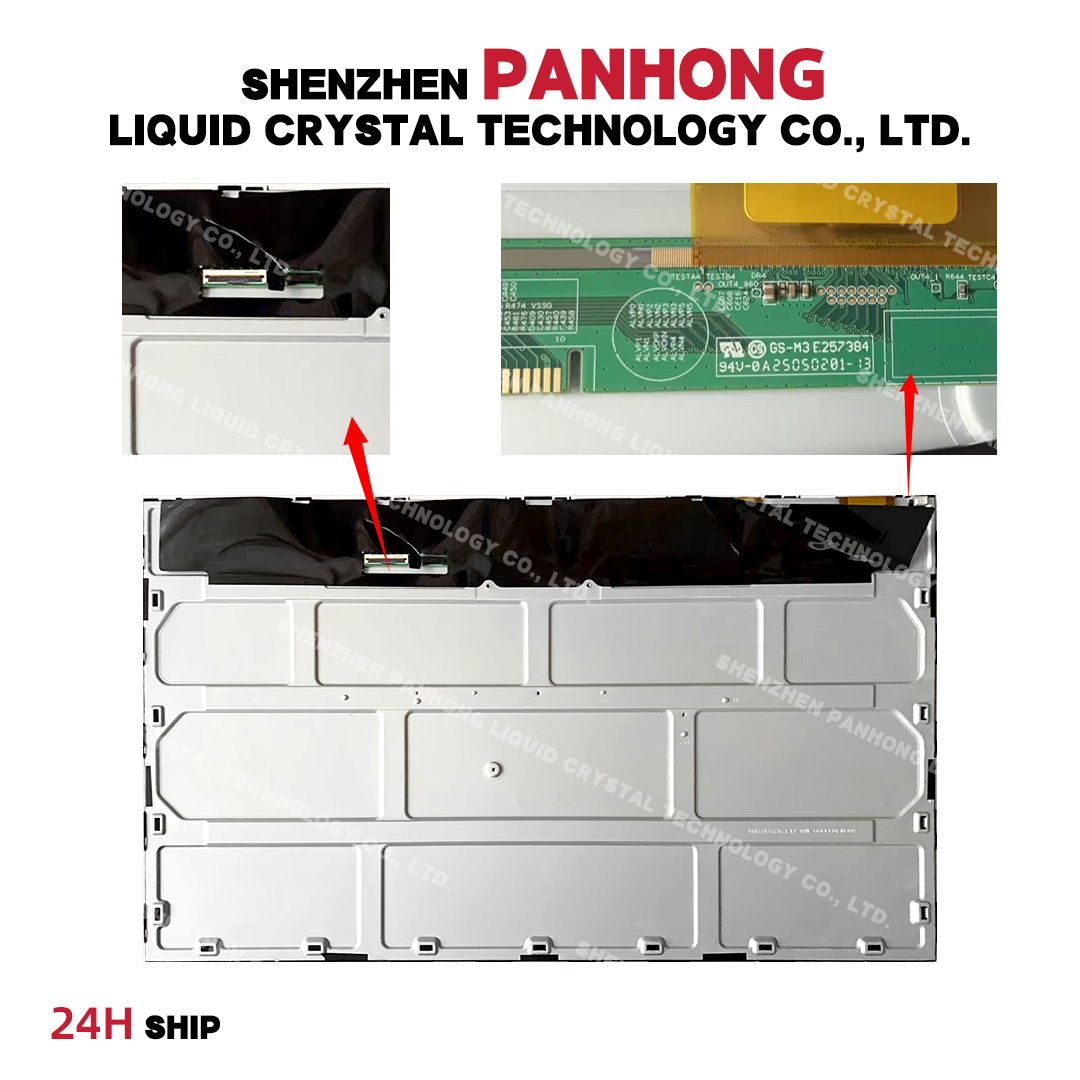

SG2701B08-4 27" LCD Glass Screen Display IPS FHD

$88.00

8 Views

The typical features are summarized as DCI-P3, sRGB, 200Hz, and surface fog. Based on its features, this model is recommended for use in computer monitors, games, and other products.

Get a Quote

Category :

27-inch LCD screen

Description

The SG2701B08-4 VH.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 597.888 (width) × 336.312 (height) mm, and its appearance size is 608.888 (width) × 347.312 (height) × 1.3 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is TBD. It uses a glass substrate of 0.50+0.50 mm. This product has no backlight. SG2701B08-4 VH.1 adopts LVDS (4 ch, 8-bit) signal interface, with a total of 61 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 200Hz.
