T215HVN05.1 21.5" LCD Screen Display IPS FHD

$88.00

11 Views

Compatible Brand
Asus,Toshiba,MSI,Fujitsu,Acer,Dell(ru),Sony,Lenovo,HP/Compaq

Get a Quote

Category :

21.5-inch LCD screen

Description

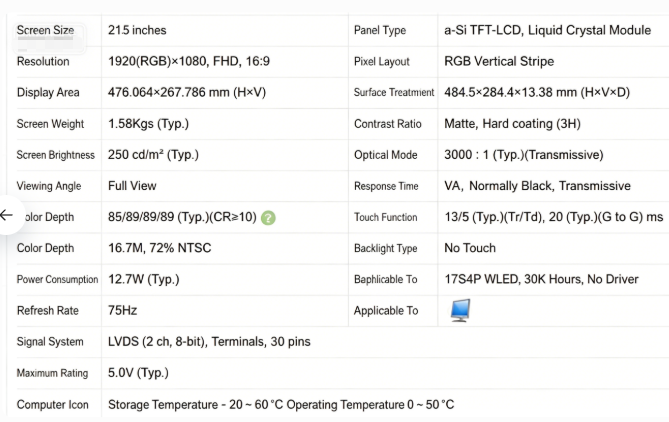

T215HVN05.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 476.064 × 267.786 (width × height) mm, and its appearance size is 484.5 (width) × 284.4 (height) × 13.38 (thickness) mm. The surface treatment is matte, Hard coating (3H)， The net weight of the product is 1.58Kg (Typ.). In terms of backlight, this product adopts a 17S4P WLED side entry light source (bottom) with a lifespan of 30K hours, without backlight driver. T215HVN05.1 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
