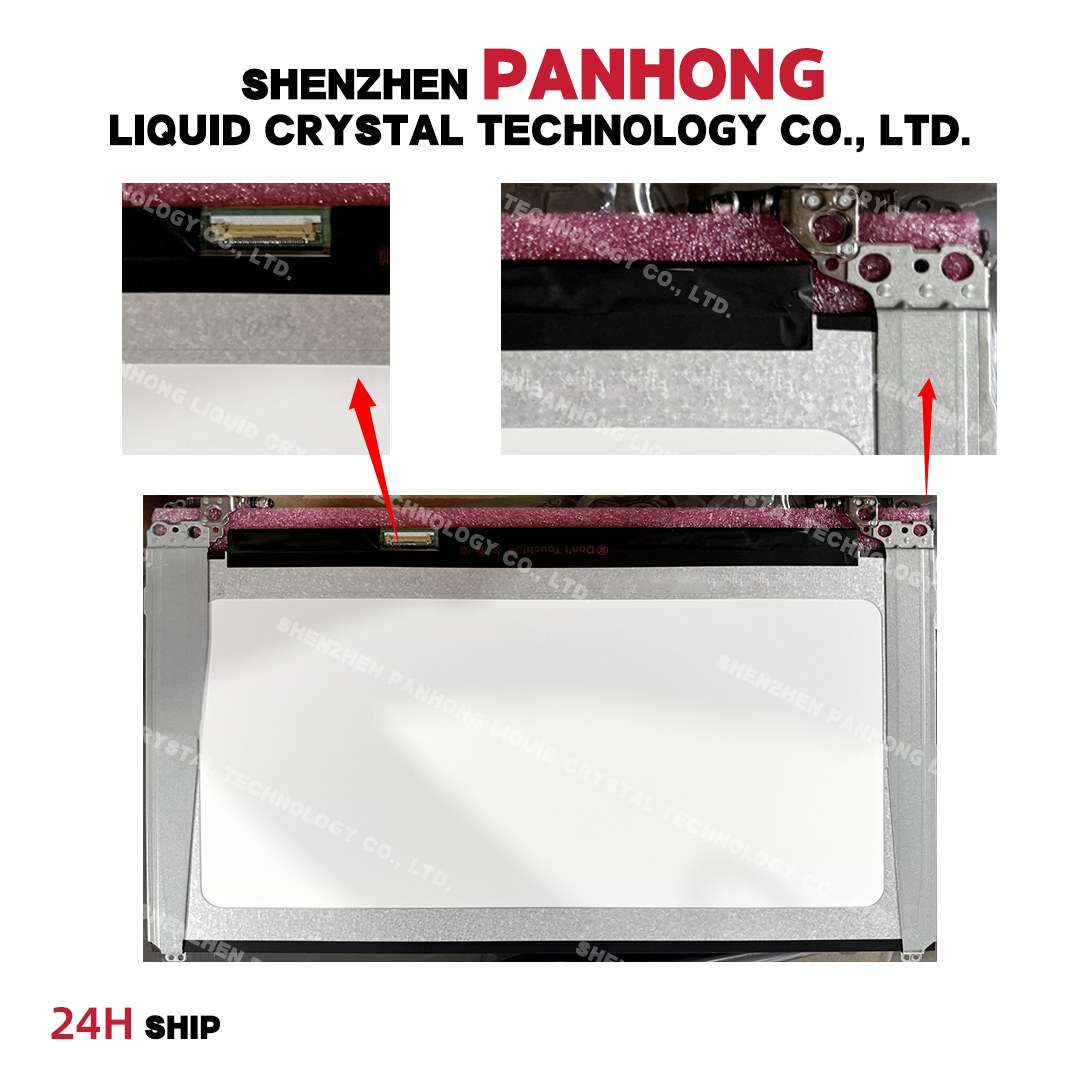

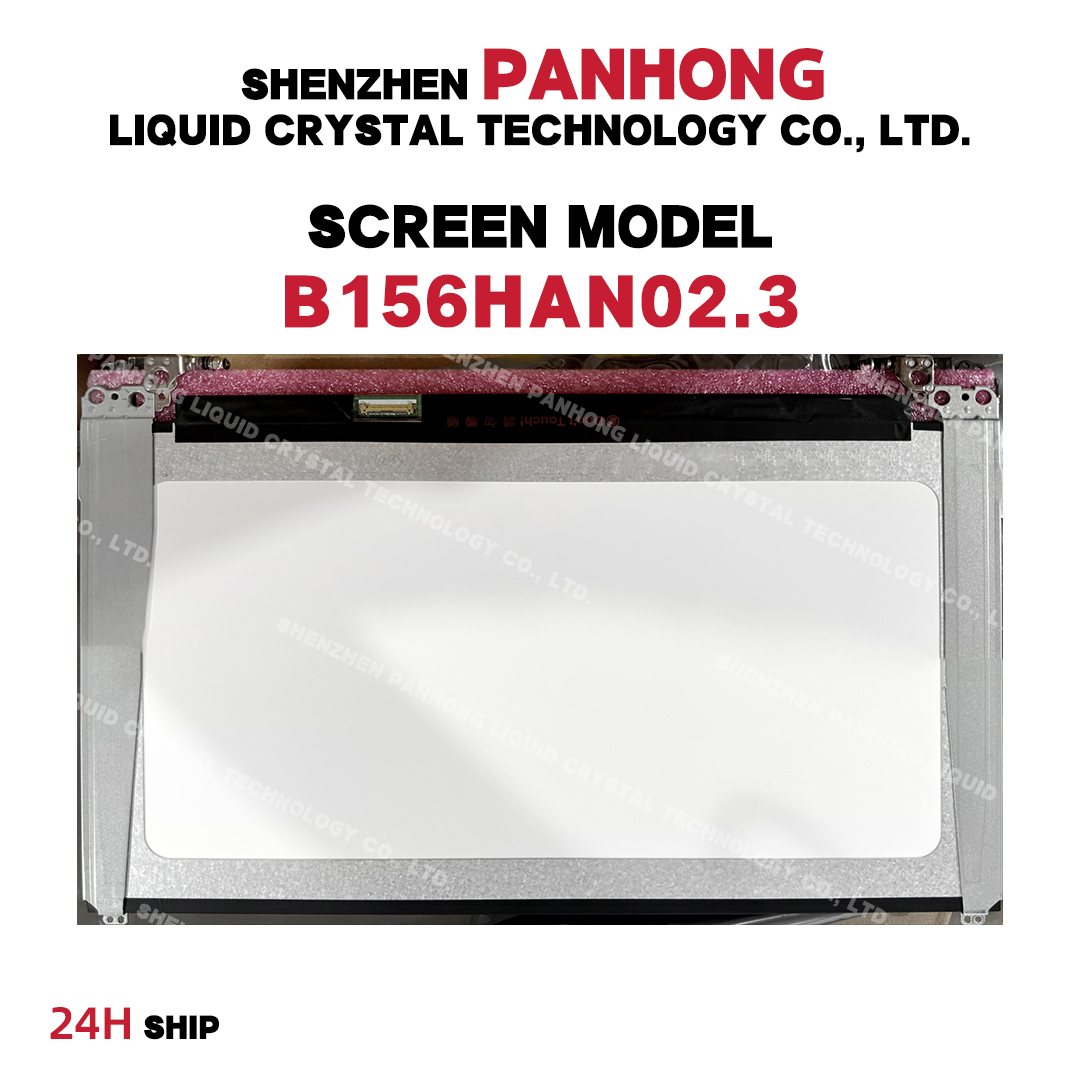

B156HAN02 .3 15.6" Laptop LCD Screen Display

$35.00

8 Views

Compatible Brand Universal Screen
Typical features include: white LED backlight with LED driver, inverted terminals, matte surface, Dell DP/N 0XV2F6, 061FT0. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops.

Get a Quote

Category :

15.6-inch Laptop lcd screen

Description

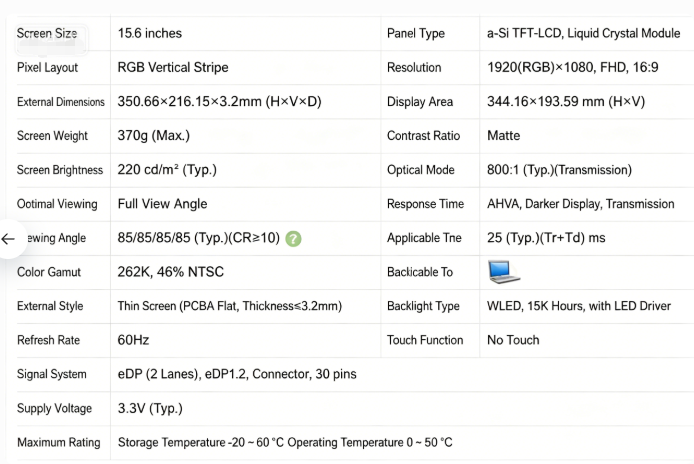

B156HAN02.3 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 344.16 × 193.59 (width × height) mm, and its appearance size is 350.66 (width) × 216.15 (height) × 3.2 (thickness) mm. The surface treatment is matte, and the net weight of the product is 370g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours, including LED driver. B156HAN02.3 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
