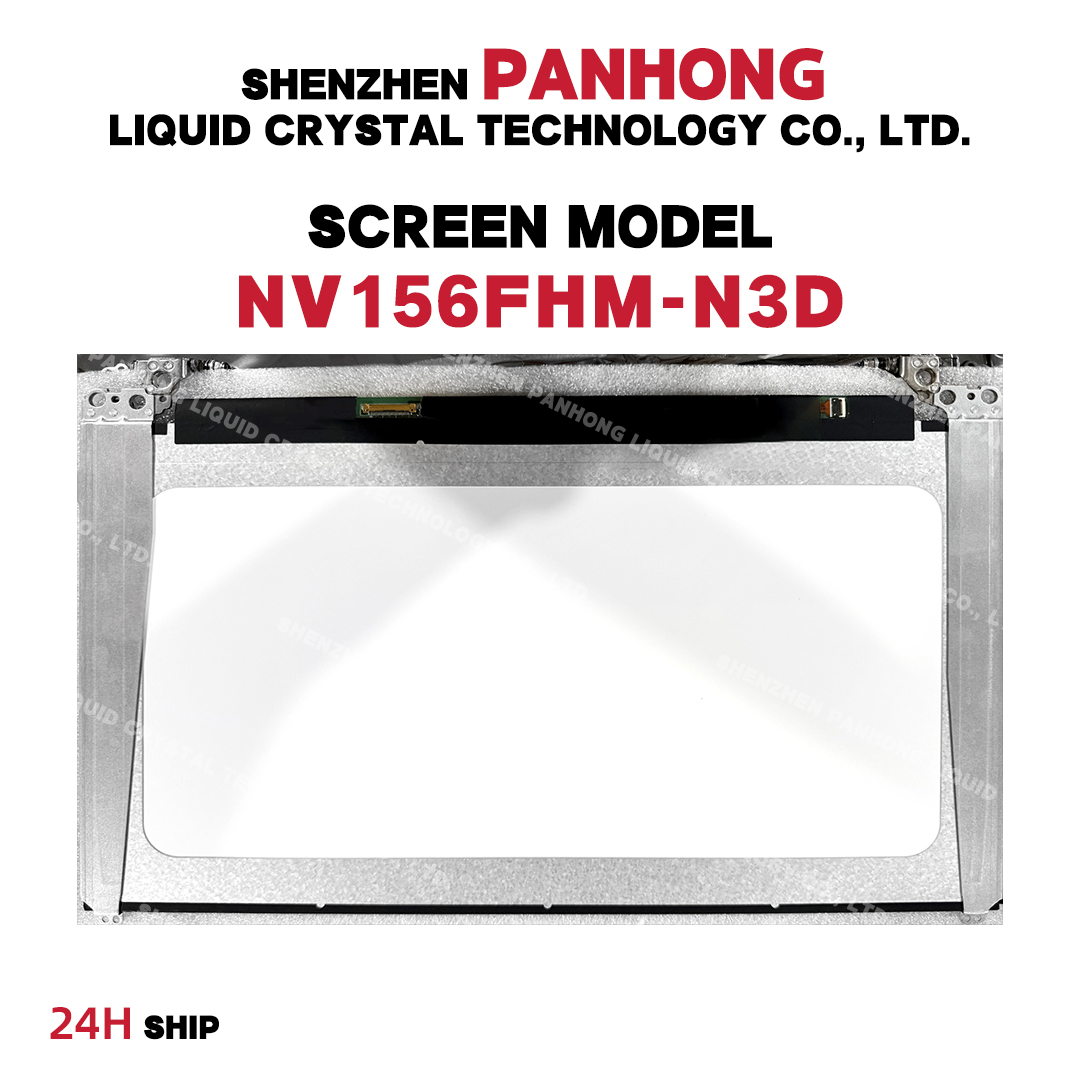

NV156FHM-N3D 15.6" Laptop LCD Screen Display

$35.00

8 Views

Typical features are summarized as follows: white LED backlight, including LED driver, inverted terminal, surface matte, eDP1.2, DELL DP/N: 0PN8P2. Based on its features, this model is recommended for use in laptops and other products.

Get a Quote

Category :

15.6-inch Laptop lcd screen

Description

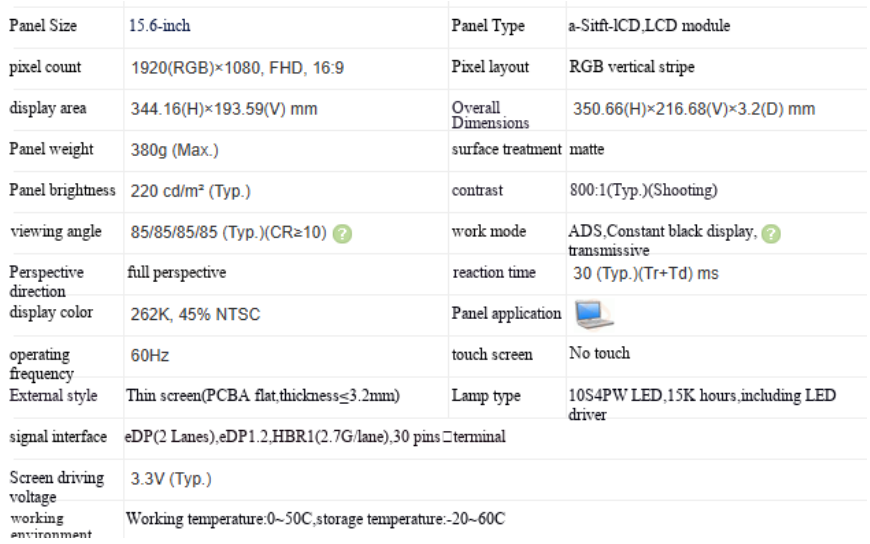

The NV156FHM-N3D has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 344.16 (width) × 193.59 (height) mm, and its appearance size is 350.66 (width) × 216.68 (height) × 3.2 (thickness) mm. The surface treatment is matte, and the net weight of the product is 380g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a 10S4P WLED side entry light source with a lifespan of 15K hours, including LED driver. The NV156FHM-N3D adopts eDP (2 Lanes) signal interface, with a total of 30 pins, terminal connection, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
