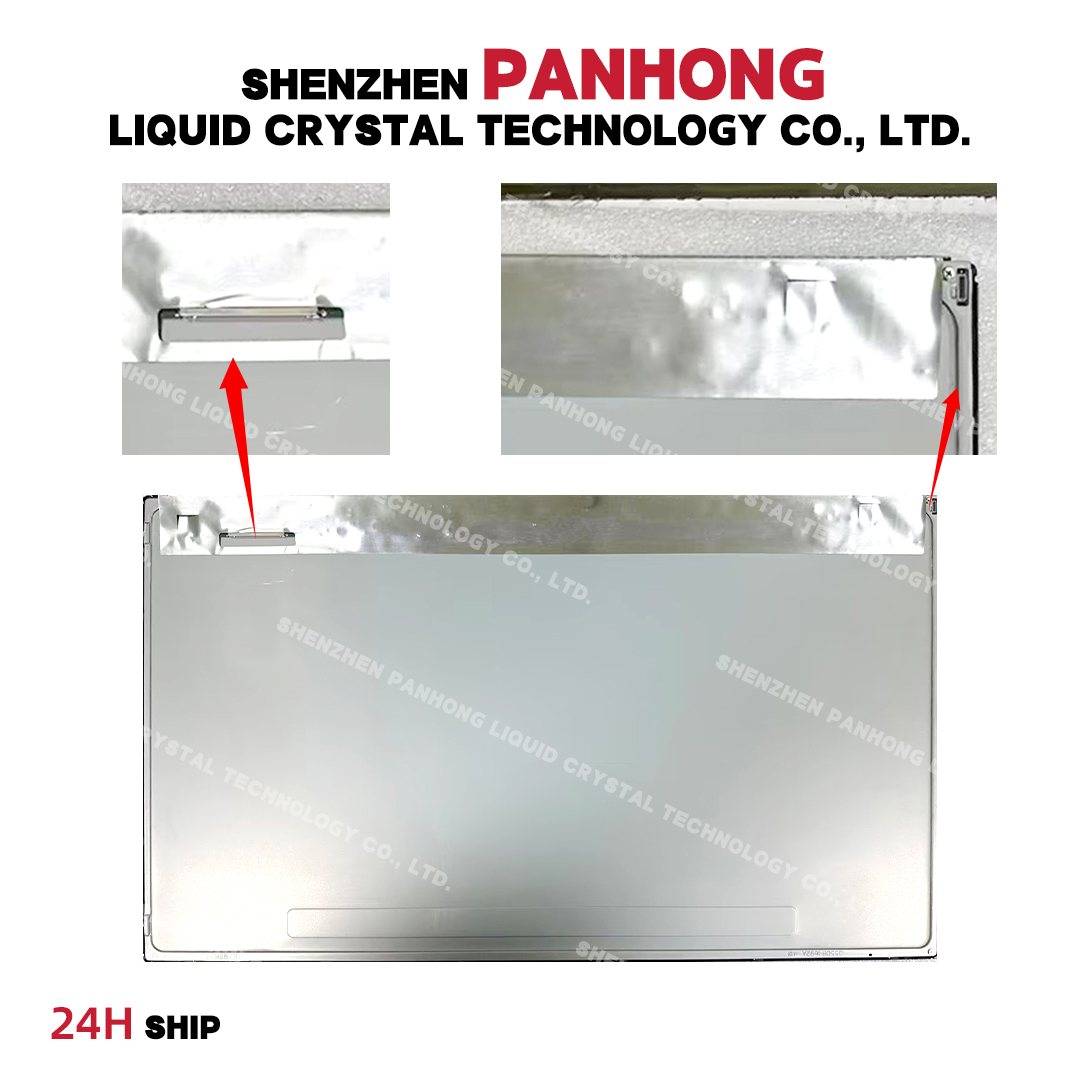

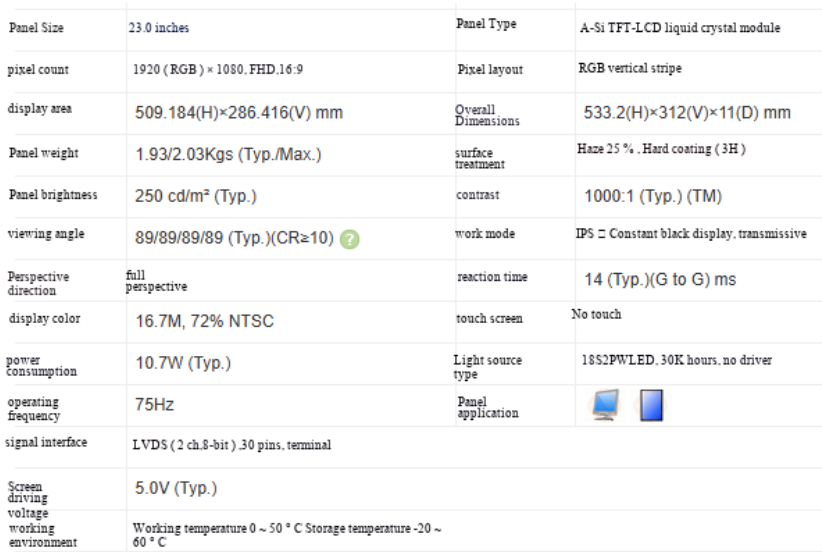

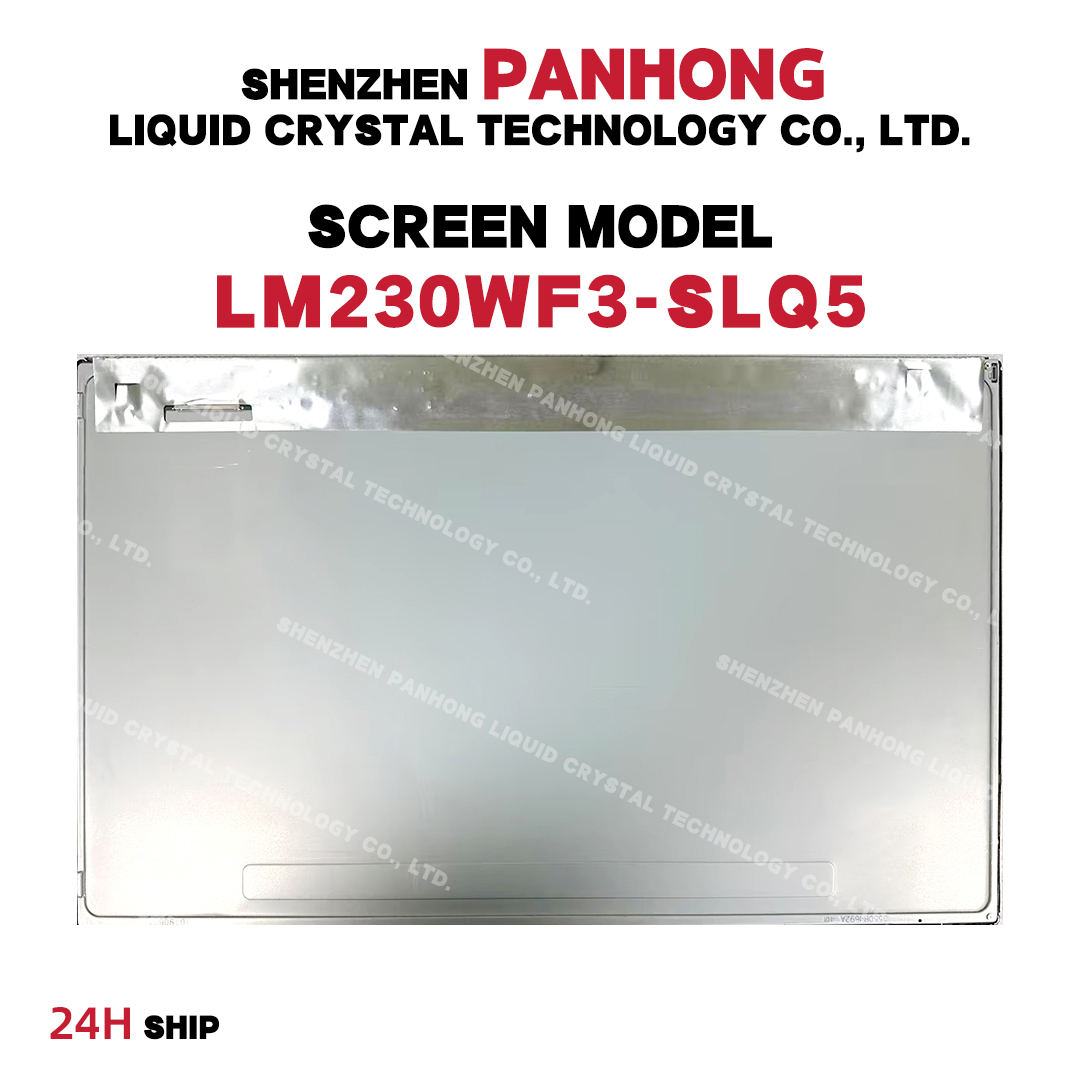

The LM230WF3-SLQ5 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 509.184 × 286.416 (width × height) mm, the visible size is 513.8 × 291.0 (width × height) mm, the appearance size is 533.2 × 312 (width × height) × 11 (thickness) mm, the surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 1.93/2.03Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (right side) with 18S2P WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM230WF3-SLQ5 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
