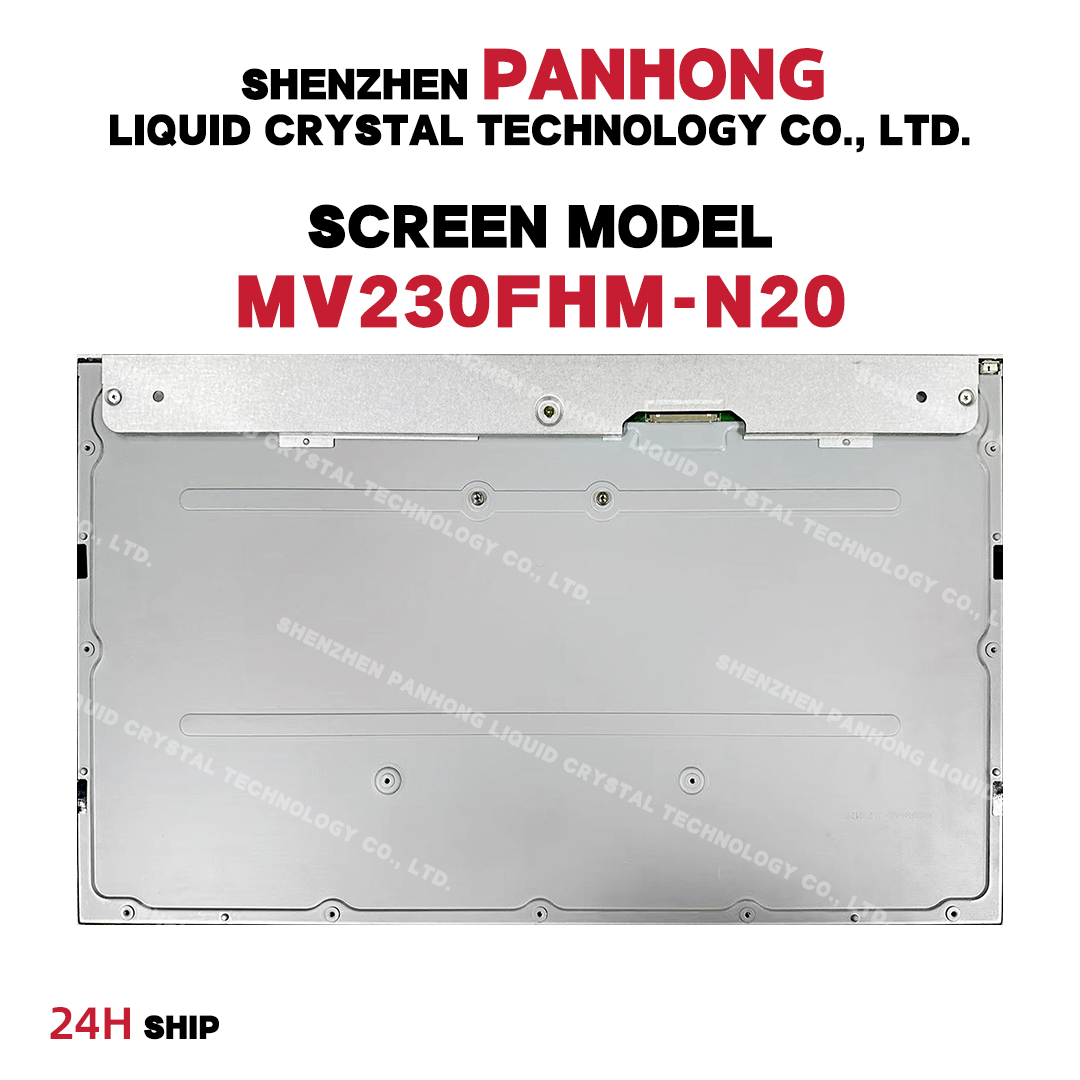

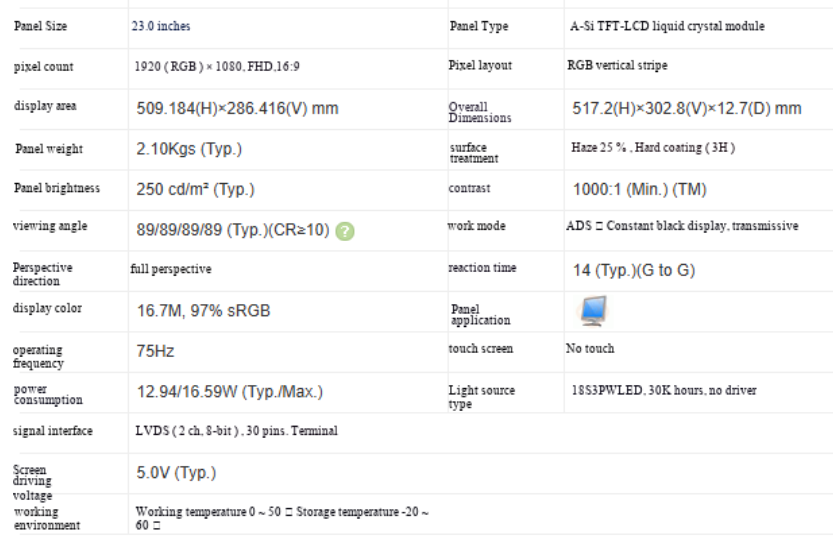

The MV230FHM-N20 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in vertical RGB stripes. Its display area size is 509.184 × 286.416 (width × height) mm, and its appearance size is 517.2 × 302.8 (width × height) × 12.7 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 2.10Kgs (Typ.). In terms of backlight, this product adopts a side entry light source (bottom) with 18S3P WLED emission, and the service life of the light source is 30K hours, without backlight driver. MV230FHM-N20 adopts LVDS (2 ch, 8-bit) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 5.0V (Typ.). Its typical vertical refresh rate Fv is 75Hz.
