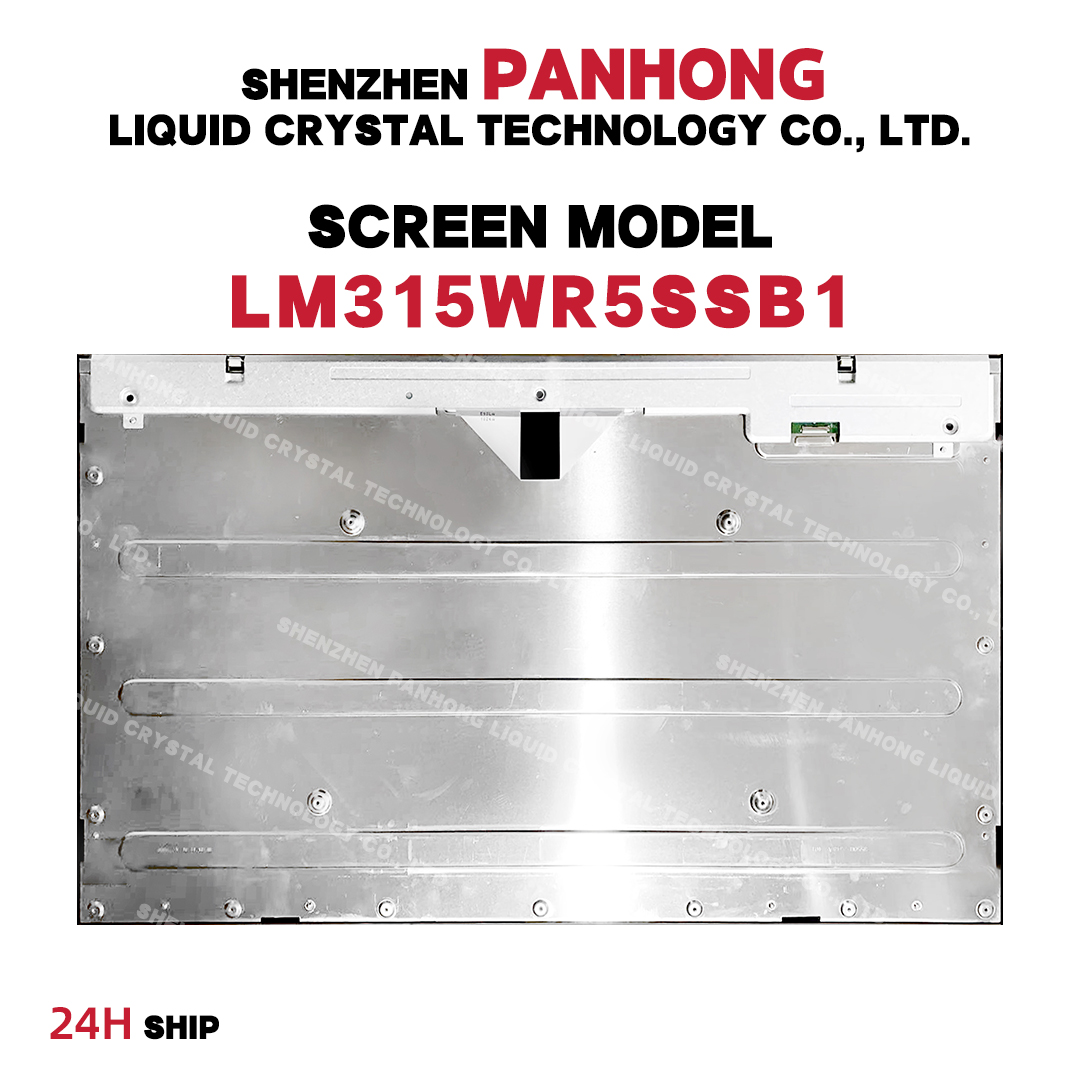

LM315WR5-SSB1 32" LCD Screen Display IPS FHD

$200.00

4 Views

Typical features include DCI-P3, sRGB, borderless on 3 sides, white LED backlight, inverted terminals, 10 bit grayscale, matte surface, DCI 98%, 3-side borderless, Panel Reverse type, LBL. Its working temperature is 0~50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in computer monitors.

Get a Quote

Category :

31.5-inch LCD screen

Description

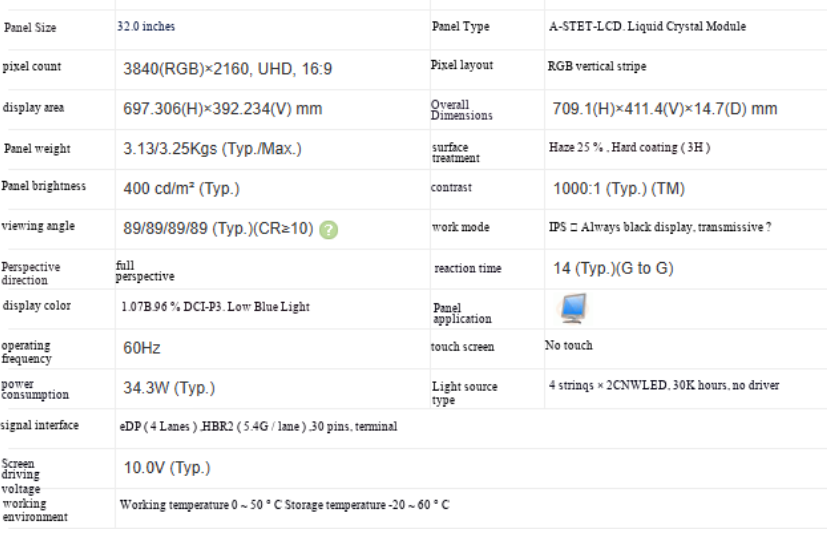

The display resolution of LM315WR5-SSB1 is 3840 (RGB) × 2160 (UHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 697.306 × 392.234 (width × height) mm, and its appearance size is 709.1 (width) × 411.4 (height) × 14.7 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.13/3.25Kg (Typ./Max.). In terms of backlight, this product adopts a side entry light source with 4 strings × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM315WR5-SSB1 adopts eDP (4 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz
