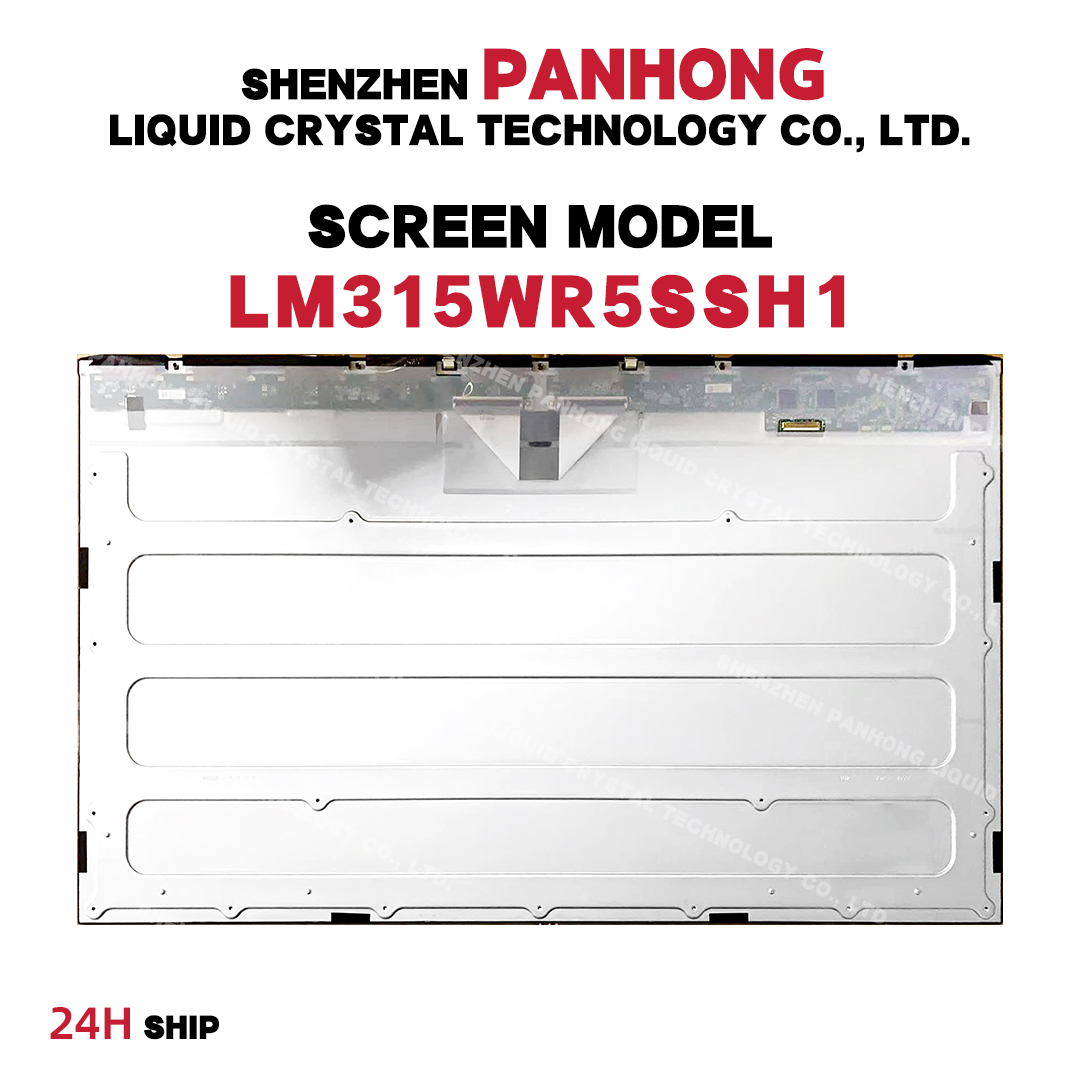

LM315WR5-SSH1 32" LCD Screen Display IPS FHD

$200.00

3 Views

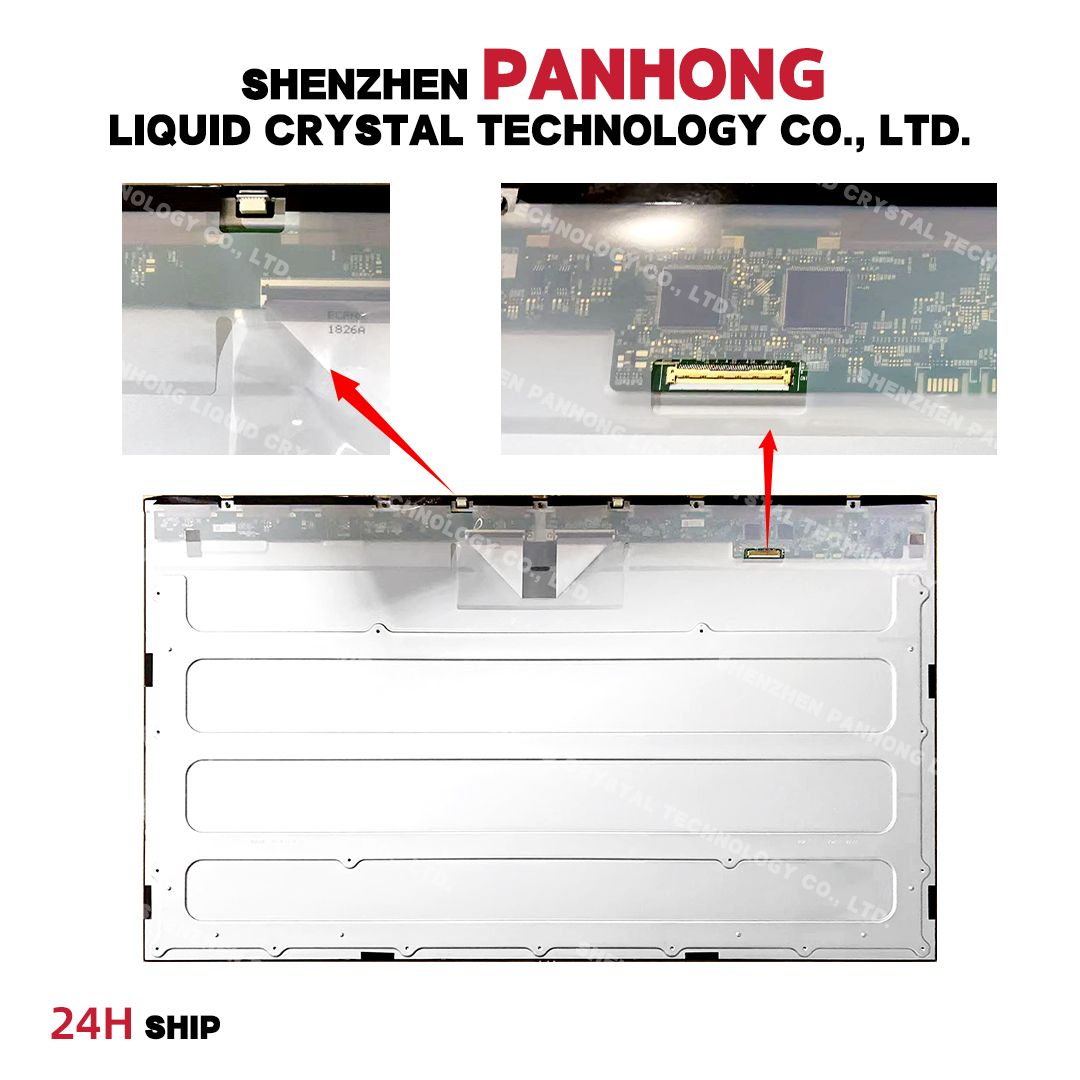

The 32.0-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.

Get a Quote

Category :

31.5-inch LCD screen

Description

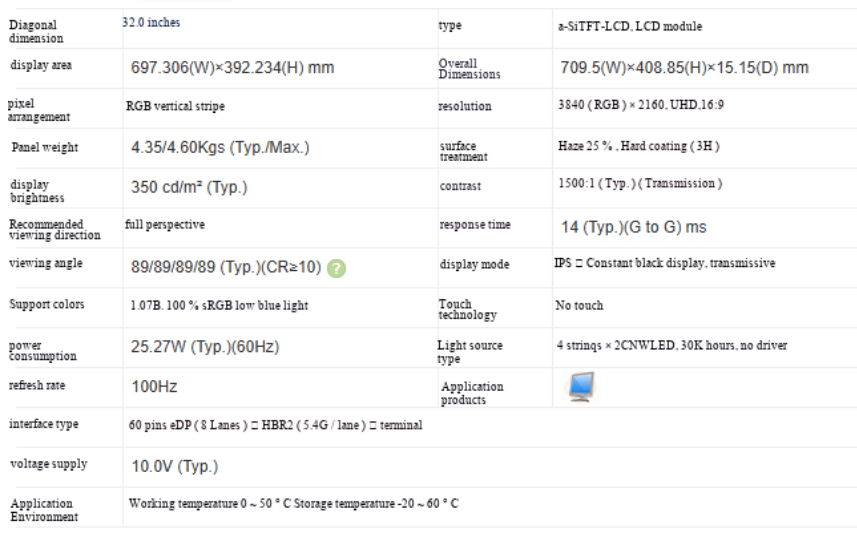

The display resolution of LM315WR5-SSH1 is 3840 (RGB) × 2160 (UHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged vertically in RGB stripes. Its display area size is 697.306 × 392.234 (width × height) mm, and its appearance size is 709.5 × 408.85 (width × height) × 15.15 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 4.35/4.60Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source with 4 strings × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM315WR5-SSH1 adopts eDP (8 Lanes) signal interface, with a total of 60 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 100Hz.
