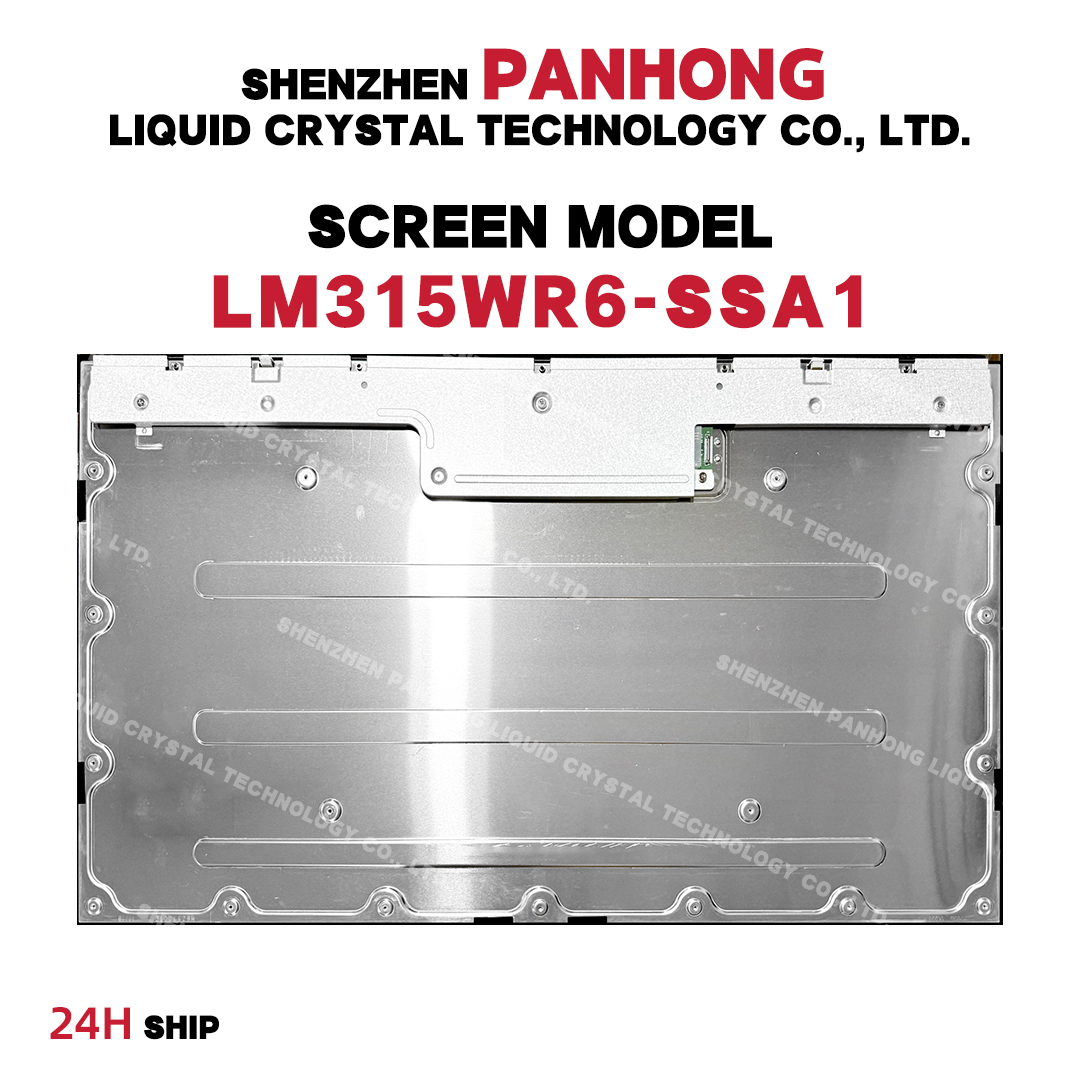

LM315WR6-SSA1 32" LCD Screen Display IPS FHD

$200.00

4 Views

The 32.0-inch LCD module product using a-Si TFT-LCD technology is equipped with WLED backlight, no backlight driver, and no touch.

Get a Quote

Category :

31.5-inch LCD screen

Description

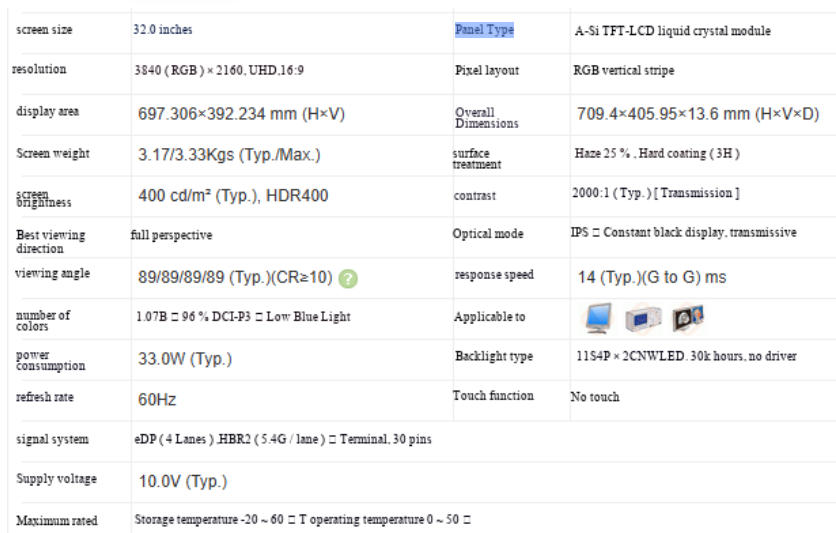

The display resolution of LM315WR6-SSA1 is 3840 (RGB) × 2160 (UHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 697.306 × 392.234 (width × height) mm, and its appearance size is 709.4 × 405.95 (width × height) × 13.6 (thickness) mm. The surface treatment is matte (Haze 25%), Hard coating (3H), and the net weight of the product is 3.17/3.33Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (bottom) with 11S4P × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM315WR6-SSA1 adopts eDP (4 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
