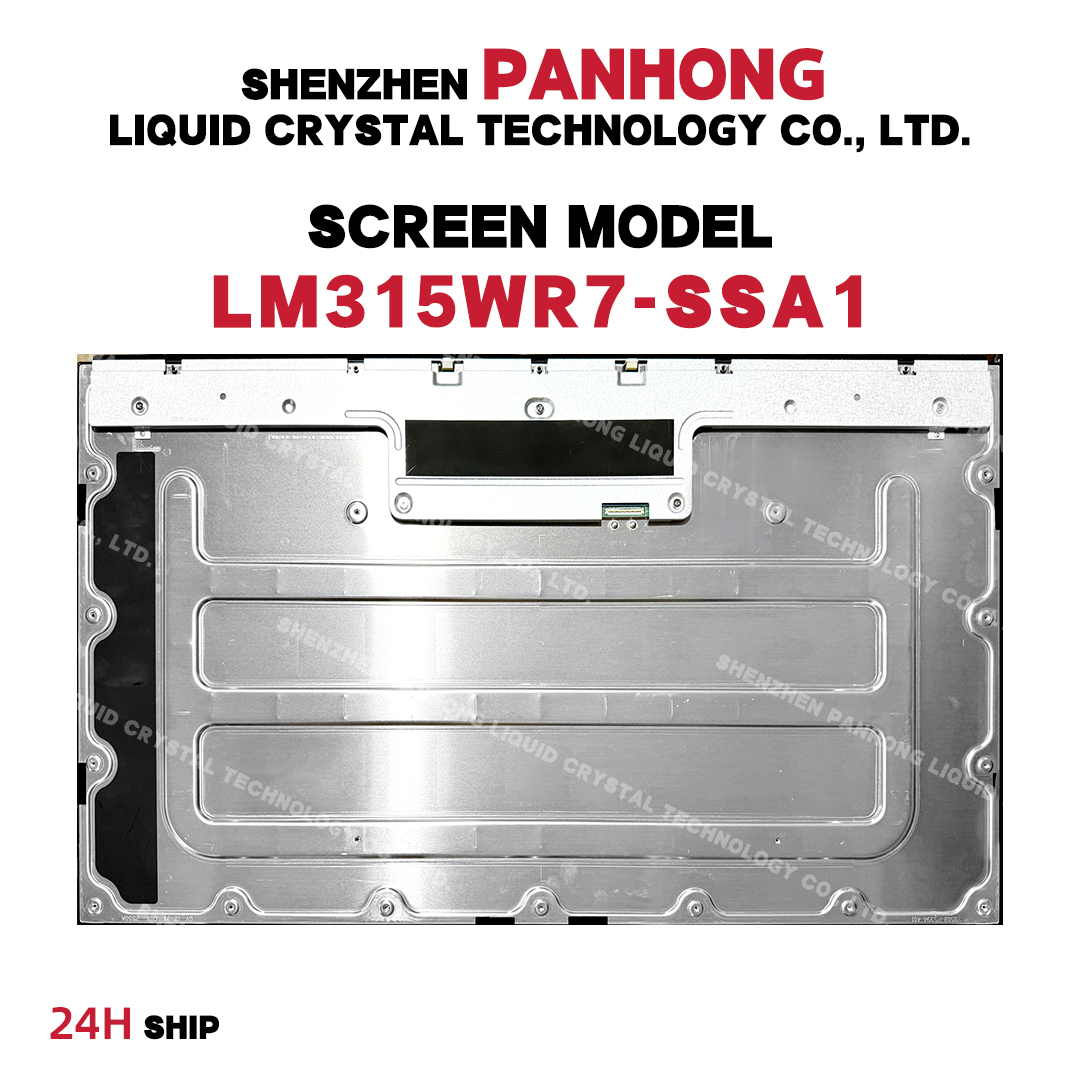

LM315WR7-SSA1 32" LCD Screen Display IPS FHD

$200.00

4 Views

Typical features are summarized as: DCI-P3, sRGB, 4-sided borderless, 120Hz, white LED backlight, inverted terminals, 10 bit grayscale, surface matte, 4-side borderless, LBL, Reverse type, TCO9.0, ES8.0. Based on its features, this model is recommended for use in computer monitors,

Get a Quote

Category :

31.5-inch LCD screen

Description

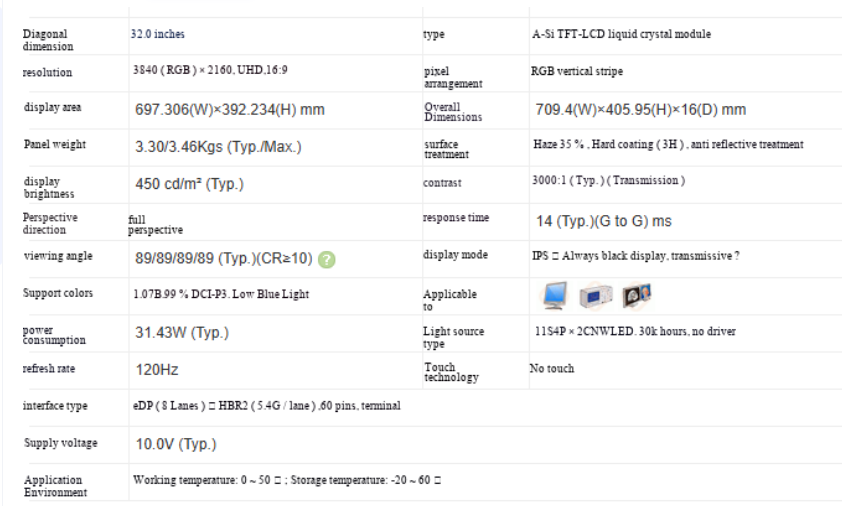

The display resolution of LM315WR7-SSA1 is 3840 (RGB) × 2160 (UHD), with an aspect ratio of 16:9 (width: height), and the pixels are arranged in vertical RGB stripes. Its display area size is 697.306 (width) × 392.234 (height) mm, and its appearance size is 709.4 (width) × 405.95 (height) × 16 (thickness) mm. The surface treatment is matte (Haze 35%), hard coating (3H), anti reflection treatment, and the net weight of the product is 3.30/3.46Kgs (Typ./Max.). In terms of backlight, this product adopts a side entry light source (bottom) with 11S4P × 2CN WLED emission, and the service life of the light source is 30K hours, without backlight driver. LM315WR7-SSA1 adopts eDP (8 Lanes) signal interface, with a total of 60 pins, connected by terminals, and a screen driving voltage of 10.0V (Typ.). Its typical vertical refresh rate Fv is 120Hz.
